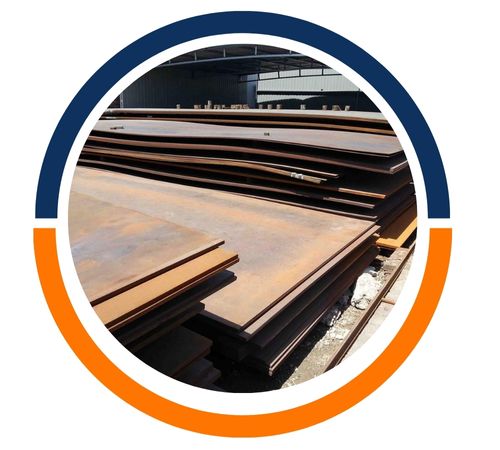

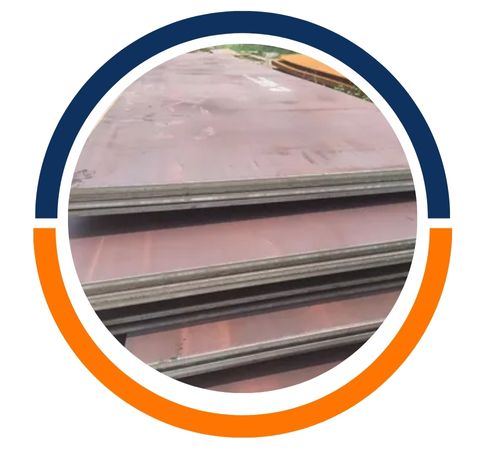

Phanuphong Steel, a reputable manufacturer and supplier of top-notch steel products based in Bangkok, Thailand, proudly presents its premium selection of **NICRODUR 450 Sheet and Plates** tailored to meet a variety of industrial demands. Known for their exceptional durability, toughness, and outstanding wear resistance, these plates are engineered to endure heavy impacts and abrasions in challenging work environments. With a strong commitment to international quality standards, Phanuphong Steel guarantees that NICRODUR 450 plates come in various sizes and specifications, perfectly serving the construction, mining, fabrication, and engineering sectors with precision and reliability.
NICRODUR 450 Sheet and Plates are crafted with a blend of carbon, manganese, silicon, nickel, chromium, and molybdenum, resulting in remarkable hardness and strength. Boasting a nominal hardness of about 450 HBW, they strike an impressive balance between wear resistance and impact toughness. These plates showcase high yield and tensile strength, along with good elongation properties, making them easy to machine, bend, and weld. Their carefully optimized chemical composition and quenched-and-tempered state ensure they are fit for heavy-duty industrial applications while maintaining structural integrity even in extreme conditions.
Item: NICRODUR 450
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Plate Thickness [mm] | C max | Si max | Mn max | S max | P max | Cr max | Ni max | Mo max | B max | CEV max | |
| 8 – 20 | 0,18 | 1,0 | 1,5 | 0,002 | 0,012 | 0,8 | 0,5 | 0,5 | 0,004 | 0,47 | |
| (20) – 40 | 0,19 | 1,0 | 1,5 | 0,002 | 0,012 | 0,9 | 0,5 | 0,5 | 0,004 | 0,56 | |
| (40) – 60 | 0,23 | 1,0 | 1,5 | 0,002 | 0,012 | 1,1 | 0,5 | 0,5 | 0,004 | 0,65 | |
| (60) – 80 | 0,25 | 1,0 | 1,5 | 0,002 | 0,012 | 1,1 | 0,5 | 0,5 | 0,004 | 0,71 |
| Yield strength(minimal), Re [MPa] | Tensile strength, Rm [MPa] | Elongation (minimal), A5 [%] | |
| NICRODUR 450 | 1280 | 1450 | 9 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
Phanuphong Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Bangkok, Thailand.
