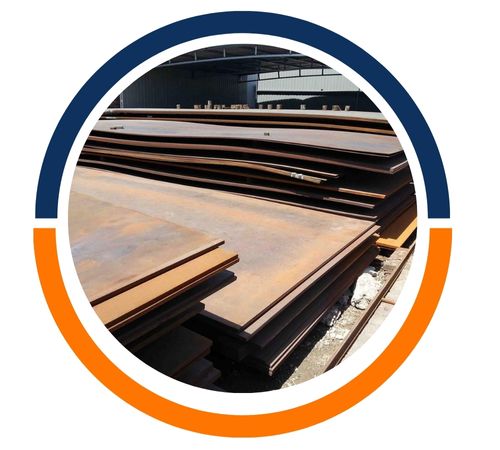

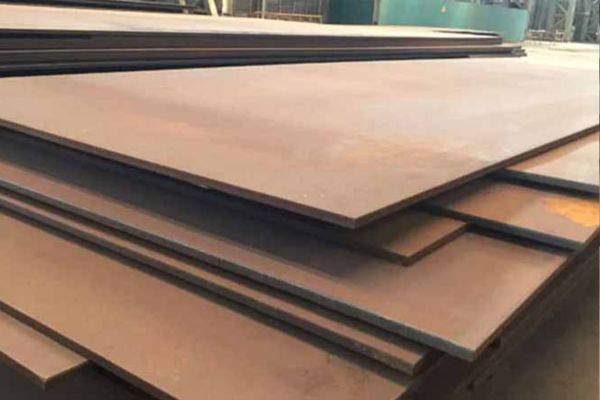

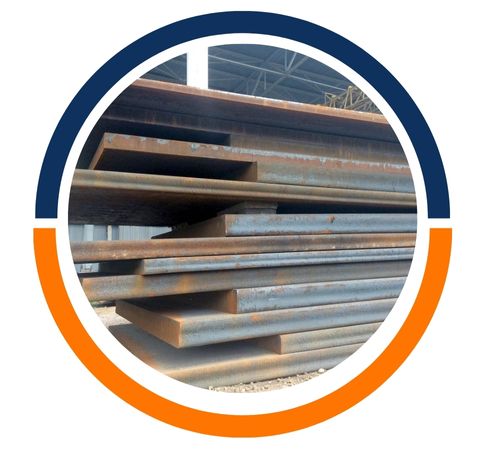

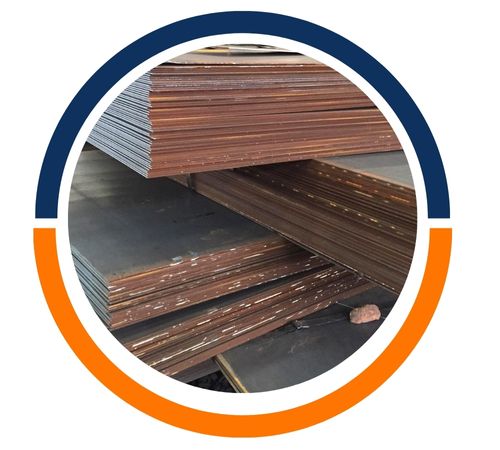

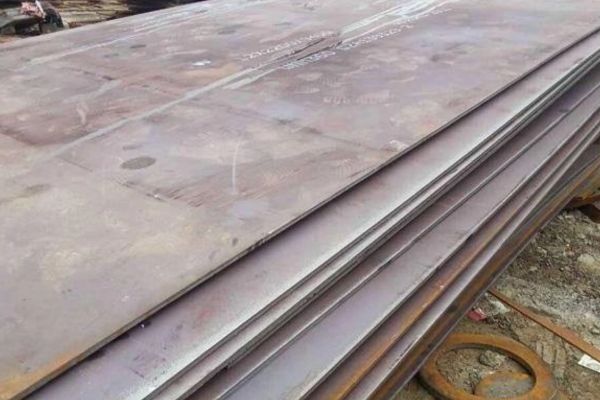

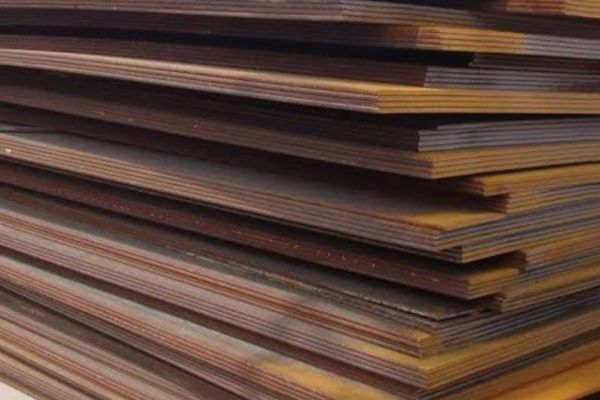

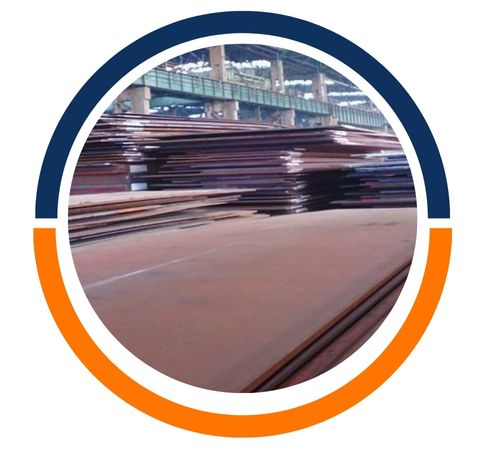

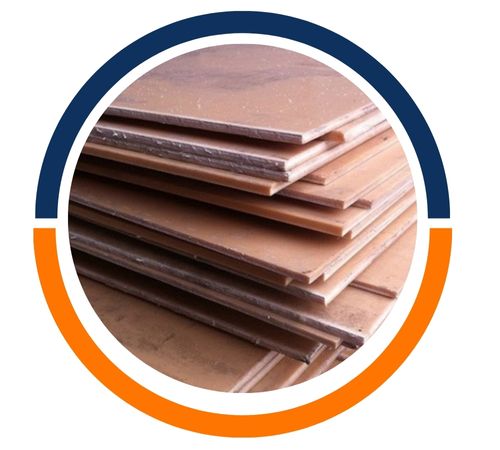

Phanuphong Steel and Plates, located in Bangkok, Thailand, has earned a solid reputation as a reliable manufacturer and supplier of top-notch steel sheets and plates tailored for industrial use. One of their standout products is the NICRODUR 400 Sheet and Plate, recognized as a leading wear-resistant steel option. With its remarkable durability, toughness, and outstanding performance in extreme conditions, NICRODUR 400 is perfect for demanding sectors like mining, construction, and heavy machinery. Phanuphong Steel is dedicated to providing high-quality products consistently, making them a go-to partner for businesses in need of durable steel solutions throughout Thailand and Southeast Asia.
NICRODUR 400 is a wear-resistant steel plate boasting a nominal hardness of 400 HBW. Its composition typically includes carbon (0.12–0.22%), manganese (1.0–1.6%), silicon (0.2–0.5%), chromium (0.5–1.5%), along with trace amounts of nickel and molybdenum, all of which enhance its strength and hardenability. The mechanical properties feature a tensile strength of about 1250 MPa and a yield strength near 1000 MPa, coupled with excellent impact resistance. This specific makeup ensures that NICRODUR 400 can withstand abrasion and mechanical wear, making it ideal for tough service conditions without sacrificing machinability or weldability.
Item: NICRODUR 400
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| PLATE | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| THICKNESS MM | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | TYPV | TYPV |
| 4-13 | 0.27 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.25 | 0.25 | 0.004 | 0.49 | 0.34 |
| (13) -32 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.50 | 0.30 | 0.004 | 0.62 | 0.41 |
| (32) -40 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 1.00 | 0.60 | 0.004 | 0.64 | 0.43 |
| (40) -80 | 0.30 | 0.7 | 1.6 | 0.025 | 0.01 | 1.50 | 1.50 | 0.60 | 0.004 | 0.74 | 0.46 |
| Thickness | Hardness HBW | Typical yield strength MPa, |
| mm | min – max 1 | not guaranteed |
| 4 – 32 | 470 – 530 | 1250 |
| (32) – 103 | 450 – 540 | 1250 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
