Phanuphong Steel and Plates, located in Bangkok, Thailand, has built a solid reputation as a reliable manufacturer and supplier of top-notch HFS Tubing, designed to meet a variety of industrial needs. With a strong focus on precision engineering and durability, this company provides tubing solutions that adhere to international standards for strength and performance. Their HFS Tubing is well-known for its impressive dimensional accuracy, smooth surface finish, and robust mechanical strength. It’s crafted to serve multiple sectors, including construction, automotive, mechanical, and energy, ensuring a dependable supply of high-quality products for both local and global markets.

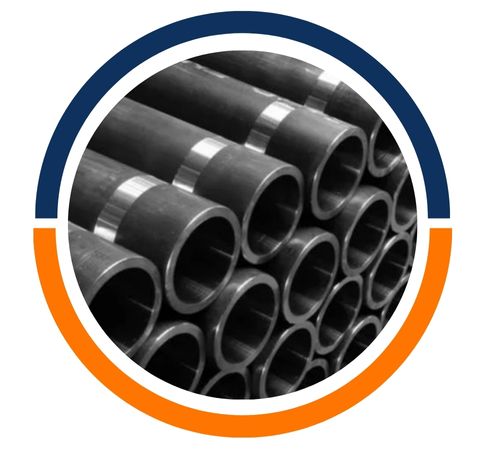

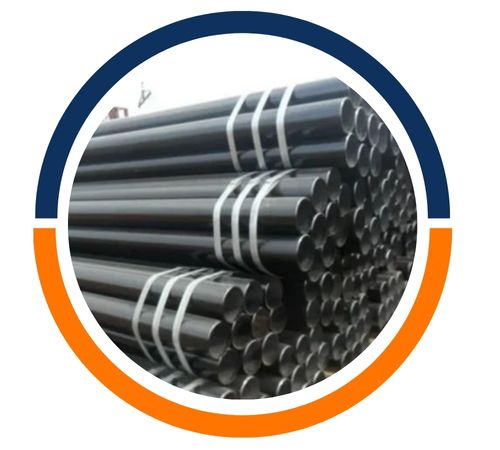

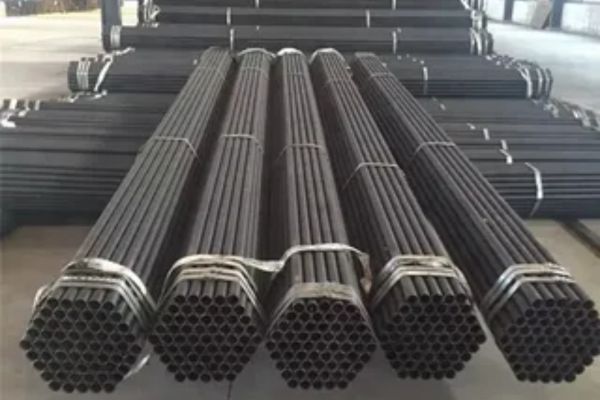

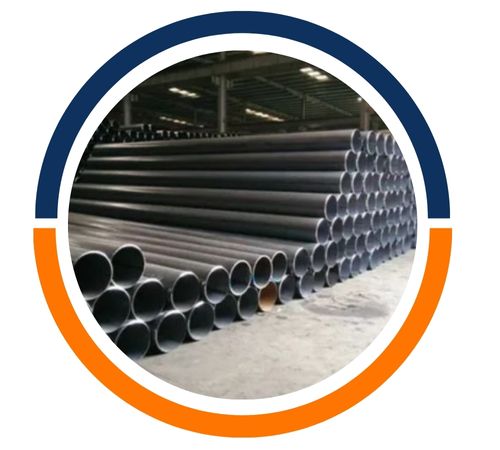

HFS Tubing, or Hot Finished Seamless Tubing, is mainly produced from carbon steel or alloy steel grades, which enhances its toughness and strength. The composition typically includes elements like carbon, manganese, silicon, and small amounts of sulfur and phosphorus, depending on the specific requirements. On a mechanical level, HFS Tubing showcases outstanding tensile strength, excellent impact resistance, and a consistent grain structure. It boasts improved elongation, durability, and a high load-bearing capacity, making it ideal for critical applications. The hot finishing process guarantees better dimensional accuracy and flawless surfaces, boosting overall mechanical reliability under pressure and high temperatures.
| Grade | Chemistry         %   | Yield | Tensile | Elongation | Typical Hardness | |
|               | PSI | PSI | % in 2″ section | Min | ||
| 1020 | Carbon | 0.18-0.23 | 32,000 | 50,000 | 25 | B-55 |
| MN | 0.30-0.60 | |||||
| P | 0.040 Max | |||||
| S | 0.050 Max | |||||
| 1026 | Carbon | 0.220-0.280 | 35,000 | 55,000 | 25 | B-60 |
| MN | 0.600-0.900 | |||||
| P | 0.040 Max | |||||
| S | 0.050 Max | |||||
| Wall Thickness Range as a Percent of Outside Diameter | % Over and Under Nominal Wall | |||||||
| OD up to 2.999″ | OD 3.00″- 5.999″ | OD 6.00″- 10.750″ | ||||||
| Walls Under 15% of nominal O.D. | 12.50% | 10.00% | 10.00% | |||||
| Walls Over 15% of nominal O.D. | 10.00% | 7.50% | 10.00% | |||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Wall Thickness | ||||||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | SCH 60 | |||||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | Â | Â | 1.2 | 0.27 | Â | Â | 1.5 | 0.33 | Â | Â | 1.73 | 0.37 | Â | Â | Â | Â |
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | Â | Â | 1.65 | 0.49 | Â | Â | 2 | 0.58 | Â | Â | 2.24 | 0.64 | Â | Â | Â | Â |
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | Â | Â | 1.65 | 0.63 | Â | Â | 2 | 0.74 | Â | Â | 2.31 | 0.87 | Â | Â | Â | Â |
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | Â | Â | 2.77 | 1.29 | Â | Â | Â | Â |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | Â | Â | 2.87 | 1.71 | Â | Â | Â | Â |
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | Â | Â | 3.38 | 2.54 | Â | Â | Â | Â |
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | Â | Â | 3.56 | 3.44 | Â | Â | Â | Â |
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | Â | Â | 3.68 | 4.11 | Â | Â | Â | Â |
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | Â | Â | 3.91 | 5.52 | Â | Â | Â | Â |
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | Â | Â | 5.16 | 8.77 | Â | Â | Â | Â |
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | Â | Â | 5.49 | 11.47 | Â | Â | Â | Â |
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | Â | Â | 5.74 | 13.78 | Â | Â | Â | Â |
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | Â | Â | 6.02 | 6.32 | Â | Â | Â | Â |
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | Â | Â | 6.55 | 2210 | Â | Â | Â | Â |
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | Â | Â | 7.11 | 28.69 | Â | Â | Â | Â |
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | Â | Â | 10.81 | 53.9 |
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | Â | Â | 12.2 | 82.8 |
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | Â | Â | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 |
| 400 | 16 | 406.4 | 4.19 | 42.2 | Â | Â | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 |
| 450 | 18 | 457.2 | 4.19 | 47.46 | Â | Â | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 |
| 500 | 2C | 508 | 4.78 | 60.23 | Â | Â | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 |
| 550 | 22 | 558.8 | 4.78 | 65.95 | Â | Â | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 |
| 600 | 24 | 609.6 | 5.54 | 83.8 | Â | Â | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 |
| 650 | 26 | 660.4 | Â | Â | Â | Â | Â | Â | 7.92 | 129.4 | 12.7 | 205.97 | Â | Â | 9.53 | 155.32 | Â | Â | Â | Â |
| 700 | 28 | 711.2 | Â | Â | Â | Â | Â | Â | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | Â | Â | Â | Â |
| 750 | 3C | 762 | 6.35 | 120.15 | Â | Â | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | Â | Â | Â | Â |
| 800 | 32 | 812.8 | Â | Â | Â | Â | Â | Â | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | Â | Â |
| 850 | 34 | 863.6 | Â | Â | Â | Â | Â | Â | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | Â | Â |
| 900 | 36 | 914.4 | Â | Â | Â | Â | Â | Â | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | Â | |
Thanks to its strength and versatility, HFS Tubing is widely used across various industries. In construction, it serves as a key component for structural frameworks, heavy-duty supports, and scaffolding systems. The automotive and transport sectors rely on it for chassis, axles, and precision components that require both strength and stability. In the oil, gas, and power generation industries, HFS Tubing is the go-to choice for pipelines, boilers, and heat exchangers, thanks to its ability to endure high pressures and temperatures. Its mechanical reliability and uniformity also make it an essential material for machinery, fabrication, and general engineering applications around the globe.
Phanuphong Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Bangkok, Thailand.
