Phanuphong Steel and Plates, a well-respected manufacturer and supplier located in Bangkok, Thailand, has built a solid reputation for providing top-notch Carbon Steel API X65 5L PSL 2 Pipes. These pipes are crafted to adhere to rigorous international standards, ensuring they deliver high performance, durability, and reliability even in the toughest industrial settings. Thanks to their advanced manufacturing techniques and strict quality control measures, Phanuphong Steel guarantees pipes that boast exceptional resistance, precise dimensions, and a long lifespan. Catering to sectors like oil and gas, petrochemical, construction, and energy, the company is dedicated to offering products that not only meet but exceed customer expectations while remaining cost-effective.
The Carbon Steel API X65 5L PSL 2 Pipes are primarily made up of carbon, manganese, phosphorus, sulfur, silicon, and micro-alloying elements such as vanadium, niobium, and titanium. This specific chemical makeup strikes a fantastic balance between toughness and strength. On the mechanical side, these pipes have a minimum yield strength of 450 MPa and a tensile strength that ranges from 535 MPa to 760 MPa, ensuring they can withstand high-pressure situations. They also feature enhanced notch toughness, good weldability, and fracture resistance, making them perfect for demanding pipeline applications across various industries.
| Standard | ISO 3183 L450/ API 5L X65 |
| Grade of material | X65 / L450 (N, M, Q, R) |
| PSL Level | |

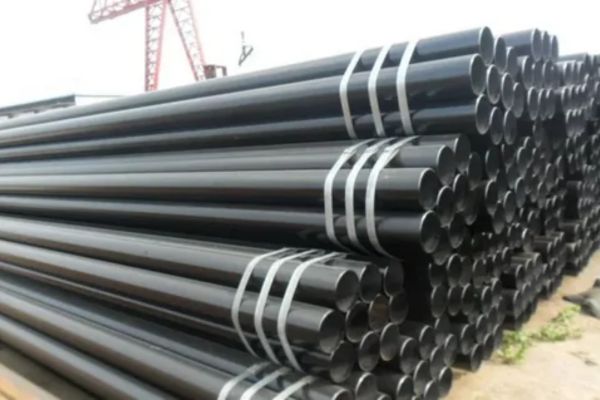

| API 5L X65 PSL2 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |

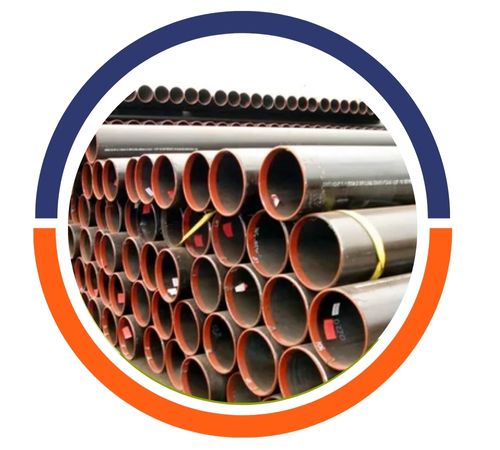

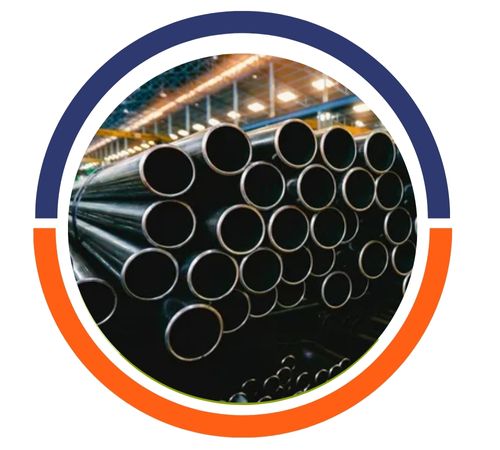

| X65 Steel LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |

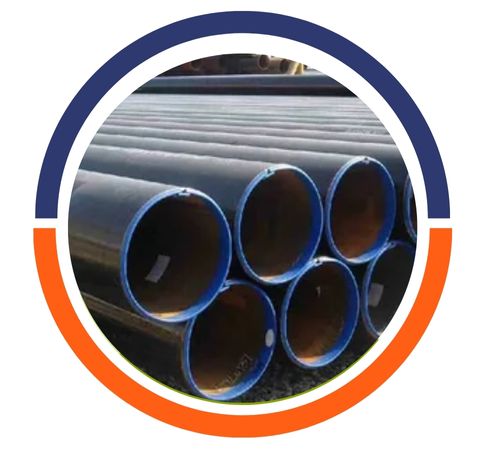

| X65 Carbon Steel SAW | 16″ – 100″ NB |
| API 5L X65 PSL1 ERW and HFW | 1/2” NB – 24” NB |
| Coating for API 5L X65 PSL2 Line Pipe | 3PP, Anti-Rust Oil, CRA clad, FBE, lined pipe, Varnished, Black Painting, 3PE, 3LPE, Galvanized, |
| API 5L Grade X65 Pipe end | Cut Grooves, Square Cut, Grooved, Vibrator Grinding, Plain end (PE), Chamfering, Coupling, Screwed, Pub Joints, Deburring, Thread Cutting, Flanged Ends, Socket, Squared Ends, Threaded Ends (Male & Female), Buttweld, Beveled End (BE) |
| Cutting Facility | Laser Cutting, Sawing, Tapping, Water Jet Cutting |
| Equivalent Standards | JIS, DIN, NFA, BS, CSA, GOST, AWWA, KS, UNI, AISI, IS, EN, API, SAE, ANSI, ISO, ASTM, GB, SS |
| Grade X65 PSL2 Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters, |
| API 5L X65 Wall Thickness | SCH-STD, SCH160, SCH80, SCH-XXS, SCH-XS, SCH40 |
| Manufacturing process | Welded, Seamless, Electro Fusion Seam Welded (EFSW), Hot Finish Seamless (HFS), Longitudinally Submerged Arc Welded (LSAW), Cold Drawn Seamless (CDS), Electric Resistance Welded (ERW), Horizontal Submerged Arc Welded (HSAW), Extrusion, Submerged Arc Welded (SAW) |
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| CS PIPES | |||||||||||
| L450Q or X65Q | 0.18f | 0.45f | 1.7f | 0.025 | 0.015 | g | g | g | h | 0.43 | 0.25 |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 450(65 300) | 600(87 000) | 23% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS (in) | Outside Diameter (in) | API 5L X65 Pipe Schedule | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 10 | SCH 20 | SCH 30 | SCH STD | SCH 40 | SCH 60 | SCH XS | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | SCH XXS | ||
| Wall Thickness (in) | ||||||||||||||
| 1/8 | 0.405 | 0.068 | 0.068 | 0.095 | 0.095 | |||||||||
| 1/4 | 0.540 | 0.088 | 0.088 | 0.119 | 0.119 | |||||||||
| 3/8 | 0.675 | 0.091 | 0.091 | 0.126 | 0.126 | |||||||||
| 1/2 | 0.840 | 0.109 | 0.109 | 0.147 | 0.147 | 0.187 | 0.294 | |||||||
| 3/4 | 1.050 | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 | |||||||
| 1 | 1.315 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 | |||||||
| 1 1/4 | 1.660 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 | |||||||
| 1 1/2 | 1.900 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 | |||||||
| 2 | 2.375 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 | |||||||
| 2 1/2 | 2.875 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 | |||||||
| 3 | 3.500 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 | |||||||
| 3 1/2 | 4.000 | 0.226 | 0.226 | 0.318 | 0.318 | |||||||||
| 4 | 4.500 | 0.237 | 0.237 | 0.337 | 0.337 | 0.438 | 0.531 | 0.674 | ||||||
| 5 | 5.563 | 0.258 | 0.258 | 0.375 | 0.375 | 0.500 | 0.625 | 0.750 | ||||||
| 6 | 6.625 | 0.280 | 0.280 | 0.432 | 0.432 | 0.562 | 0.719 | 0.864 | ||||||
| 8 | 8.625 | 0.250 | 0.277 | 0.322 | 0.322 | 0.406 | 0.500 | 0.500 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 | |
| 10 | 10.750 | 0.250 | 0.307 | 0.365 | 0.365 | 0.500 | 0.500 | 0.594 | 0.719 | 0.844 | 1.000 | 1.125 | 1.000 | |
| 12 | 12.750 | 0.250 | 0.330 | 0.375 | 0.406 | 0.562 | 0.500 | 0.688 | 0.844 | 1.000 | 1.125 | 1.312 | 1.000 | |
| 14 | 14.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.500 | 0.750 | 0.938 | 1.094 | 1.250 | 1.406 | |
| 16 | 16.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.500 | 0.656 | 0.500 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | |
| 18 | 18.000 | 0.250 | 0.312 | 0.438 | 0.375 | 0.562 | 0.750 | 0.500 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | |
| 20 | 20.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.594 | 0.812 | 0.500 | 1.031 | 1.281 | 1.500 | 1.750 | 1.969 | |
| 22 | 22.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.875 | 0.500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | ||
| 24 | 24.000 | 0.250 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.500 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | |
| 30 | 30.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.500 | ||||||||
| 32 | 32.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 34 | 34.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 36 | 36.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.750 | ||||||||
| 42 | 42.000 | 0.500 | 0.625 | 0.375 | 0.750 | |||||||||
Phanuphong Steel is a leading supplier of high-quality Carbon Steel API X65 5L PSL 2 Pipes products in Bangkok, Thailand. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
In the oil and gas industry, Carbon Steel API X65 5L PSL 2 Pipes are widely used for the safe transportation of natural gas, crude oil, and petroleum products over long distances. Their impressive strength and toughness make them ideal for both onshore and offshore pipeline projects, ensuring safe and efficient fluid movement. Additionally, they find applications in water supply systems, petrochemical processing, and structural projects that require high mechanical performance. With their excellent resistance to pressure and environmental stress, these pipes are vital to energy, construction, and industrial infrastructure projects around the globe.
