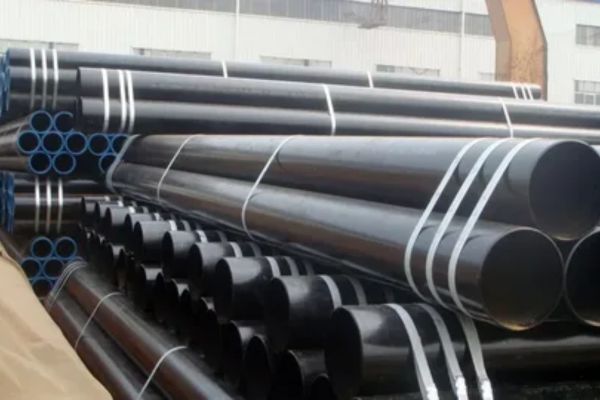

Phanuphong Steel and Plates, located in the vibrant city of Bangkok, Thailand, stands out as a top-notch manufacturer and supplier of premium carbon steel pipes, including the highly regarded API X46 5L PSL 2 Pipes. Known for their unwavering dedication to precision, durability, and adherence to industry standards, Phanuphong Steel caters to a variety of sectors that demand reliable piping solutions. The API X46 5L PSL 2 Pipes are specifically designed to endure high pressures and tough environmental conditions, making them the perfect choice for transporting oil, gas, and water. With state-of-the-art manufacturing facilities and rigorous quality control measures, Phanuphong Steel guarantees that each pipe meets international specifications, ensuring exceptional performance and longevity.
The Carbon Steel API X46 5L PSL 2 Pipes are primarily composed of iron, with a carefully controlled carbon content, along with small amounts of manganese, phosphorus, and sulfur to boost strength and durability. These pipes showcase impressive mechanical properties, featuring a minimum yield strength of 315 MPa and tensile strength that ranges from 415 to 535 MPa. The steel is known for its good weldability, toughness, and resistance to cracking, even in low-temperature conditions. Its well-balanced composition ensures reliable performance under high pressure and stress, making it ideal for demanding industrial applications.
| Grade of material | X46 / L320 (N, M, Q, R) |
| API 5L Gr X46 ERW and HFW | 1/2” NB – 24” NB |
| X46 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| Standard | ISO 3183 L320/ API 5L X46 |
| API 5L X46 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |
| PSL Level | |
| X46 Steel SAW | 16″ – 100″ NB |
| Surface Treatment | Pickling Galvanising Forging Capping Pre turning Powder Coating Degreasing Washing Copper Plating Cementing Chromium – Plating Brushing Nickle – Plating Roller Polishing Grinding Honing Shot Blasting Skiving PE Covering Roller Burnishing |
| Manufacturing process | Welded, Extrusion, Submerged Arc Welded (SAW), Seamless, Electro Fusion Seam Welded (EFSW), Longitudinally Submerged Arc Welded (LSAW), Cold Drawn Seamless (CDS), Hot Finish Seamless (HFS), Horizontal Submerged Arc Welded (HSAW), Electric Resistance Welded (ERW) |
| API 5L X46 PSL2 Pipe end | Squared Ends, Thread Cutting, Socket, Flanged Ends, Beveled End (BE), Cut Grooves, Square Cut, Grooved, Screwed, Vibrator Grinding, Coupling, Plain end (PE), Threaded Ends (Male & Female), Deburring, Chamfering, Buttweld, Pub Joints |
| Certificate | IBR, NACE, EN-10204:3.1, EN-10204:3.2, SSC, Sour-Service, HIC, |
| X46 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters, |
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| L320N or X46N | 0.24 | 0.4 | 1.2 | 0.025 | 0.015 | 0.07 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| L320Q or X46Q | 0.18 | 0.45 | 1.4 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 320 (46 400) | 435 (63 100) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NB | DN | OD (inches) | API 5L X46 Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 5 | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 160 | ||||
| 3/4″ | 20 | 1.05 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 1″ | 25 | 1.315 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 1.1/2″ | 40 | 1.9 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 2″ | 50 | 2.375 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 2.1/2″ | 65 | 2.875 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 3″ | 80 | 3.5 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 4″ | 100 | 4.5 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 5″ | 125 | 5.563 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 6″ | 150 | 6.625 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 8″ | 200 | 8.625 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 10″ | 250 | 10.75 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 12″ | 300 | 12.75 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Phanuphong Steel is a leading supplier of high-quality Carbon Steel API X46 5L PSL 2 Pipes products in Bangkok, Thailand. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
Widely utilized in the oil and gas industries, Carbon Steel API X46 5L PSL 2 Pipes are essential for transporting crude oil, natural gas, and petroleum products over long distances. They also find applications in water pipelines, chemical plants, and construction projects that require robust, high-strength piping solutions. These pipes are well-suited for both onshore and offshore uses, thanks to their excellent resistance to pressure, corrosion, and environmental stress. With outstanding mechanical properties and consistent quality, API X46 5L PSL 2 Pipes from Phanuphong Steel offer a reliable and cost-effective solution for critical infrastructure projects and industrial pipelines around the globe.
