Phanuphong Steel and Plates, a reputable manufacturer and supplier located in Bangkok, Thailand, is dedicated to providing top-notch Carbon Steel A350 LF2 Bars tailored to the needs of industries around the globe. Renowned for their impressive strength, toughness, and durability, these bars are produced under rigorous quality standards to guarantee reliability and consistency. Phanuphong Steel and Plates offers Carbon Steel A350 LF2 Bars in a variety of sizes and dimensions, catering to a wide range of industrial applications. With a strong focus on excellence and customer satisfaction, the company ensures prompt delivery and competitive pricing for clients both locally and internationally.
These Carbon Steel A350 LF2 Bars are primarily made up of carbon, manganese, phosphorus, sulfur, and silicon, along with small amounts of other elements to enhance performance. They boast a tensile strength that ranges from 485 to 655 MPa, a yield strength of around 250 MPa, and outstanding impact toughness even at low temperatures. With excellent weldability, ductility, and resistance to corrosion, these bars deliver reliable mechanical performance. Their hardness, machinability, and ability to withstand stress make them ideal for critical engineering and industrial applications that require enduring strength.
| Standard | ASTM A350, ASME SA350 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar Size | Diameter: 3-~800mm |
| Hex Bar Size | 2-100mm A/F |

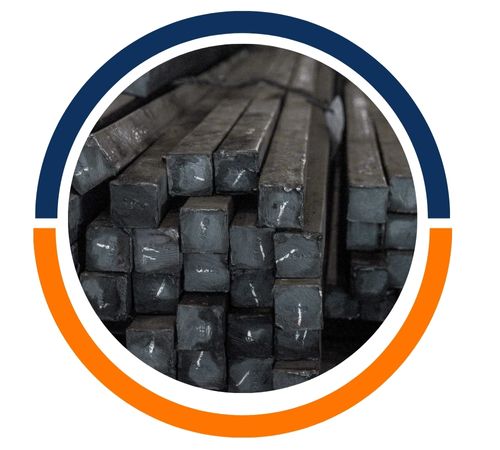

| Square Bar Size | 4 to 100mm |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |

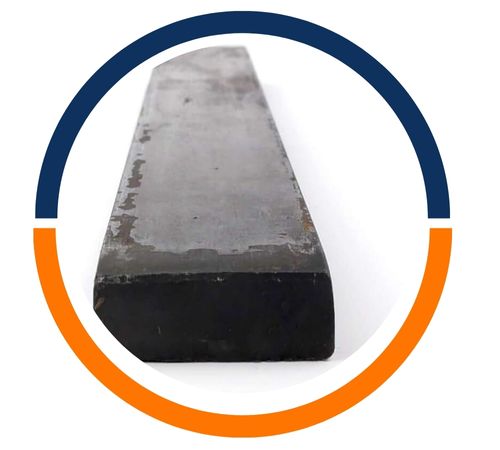

| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

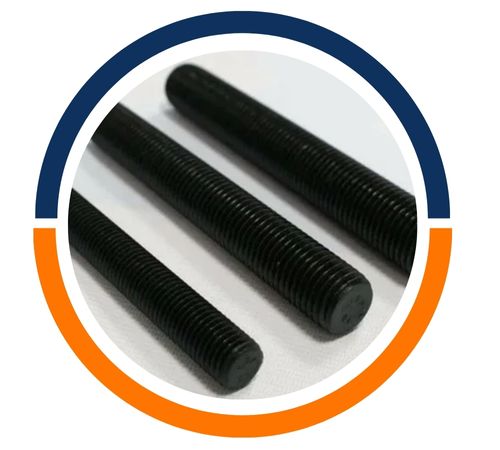

| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Grade | C | Si | Mn | P | S | Cr | Mo | Cu | Nb | V |
| LF2 | ≤0.30% | 0.15 – 0.30% | 0.60 – 1.35% | ≤0.035% | ≤0.040% | ≤0.30 % | ≤0.12% | ≤0.40% | ≤0.02% | ≤0.08% |
| Grade | Tensile strength, (MPa) | Yield (0.2%) (MPa) | Elongation (%) | Reduction of Area (%) | Hardness HB |
| LF2 | 485-655(70-95KSi) | 250(36KSi) | 22 | 30 | ≤197HB |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Phanuphong Steel is a trusted manufacturer and supplier of high-quality Carbon Steel A350 LF2 Bar in Bangkok, Thailand. We specialize in premium steel products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings, Sheets, and Plates. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability, and performance in critical industrial applications.
| STANDARD | UNS | WERKSTOFF NR. |
| ASTM A350 LF2 | K03011 | 1.0508 |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
| Diameter(Inch) | Carbon Steel LF2 Bar Size | Diameter (millimeter) | Carbon Steel LF2 Bar Size | Diameter (millimeter) | Carbon Steel LF2 Bar Size | Diameter (millimeter2) | Carbon Steel LF2 Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
| 1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
| 1/8 | 0.125 3.175 | 0.042 / 0.062496 |
| 3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
| 5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
| 7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
| 3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
| 1/4 | 0.25 6.35 | 0.167 / 0.248496 |
| 5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
| 9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
| 3/8 | 0.375 9.525 | 0.376 / 0.559488 |
| 1/2 | 0.5 12.7 | 0.668 / 0.993984 |
| 7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
| 9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
| 11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
| 5/8 | 0.625 15.875 | 1.043 / 1.551984 |
| 3/4 | 0.75 19.05 | 1.502 / 2.234976 |
| 7/8 | 0.875 22.225 | 2.045 / 3.04296 |
| 13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
| 15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
| 1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
| 1 | 1 25.4 | 2.671 / 3.974448 |
| 1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
| 1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
| 1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
| 1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
Carbon Steel A350 LF2 Bars find extensive use in industries that require high strength and low-temperature toughness. They play a vital role in the production of pressure vessels, heat exchangers, valves, flanges, and piping systems within the oil, gas, and petrochemical sectors. Additionally, these bars are utilized in power generation, marine engineering, and heavy-duty machinery, where reliability in extreme conditions is essential. Their versatility in both cryogenic and high-temperature environments makes them suitable for a variety of engineering projects. Overall, they ensure dependable performance in demanding structural and mechanical applications.
