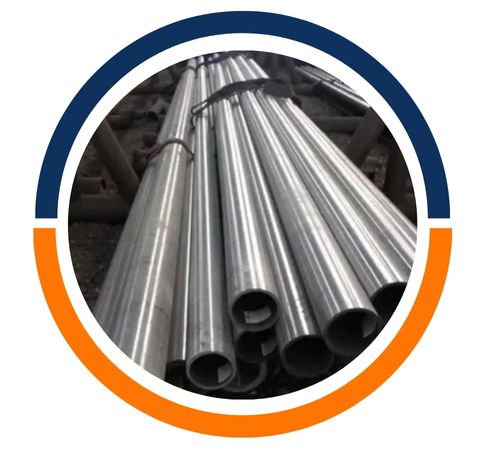

Phanuphong Steel and Plates, located in the vibrant city of Bangkok, Thailand, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Alloy Steel T92 Tubing. With years of experience under our belt, we specialize in providing advanced tubing solutions that are engineered to perform exceptionally well in extreme conditions. Our Alloy Steel T92 Tubes are crafted using state-of-the-art technology and rigorous quality control measures to ensure they meet ASTM and international standards. We proudly serve critical industries like power generation, petrochemicals, and thermal processing, and we are dedicated to excellence, timely delivery, and customer satisfaction, making us a trusted partner for demanding industrial applications both locally and globally.

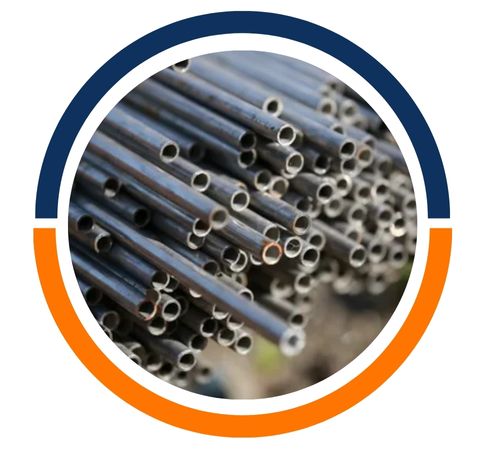

Alloy Steel T92 Tubing (ASTM A213 T92) is a high-strength, creep-resistant alloy composed of 9% Chromium, 0.5% Molybdenum, and 1.8% Tungsten, along with Vanadium, Niobium, Nitrogen, and Carbon. This distinctive blend provides remarkable thermal stability and corrosion resistance, especially in high-temperature environments. Its mechanical properties boast a minimum tensile strength of 620 MPa and a yield strength of 440 MPa, along with impressive creep rupture strength. Thanks to its fine-grain structure and carefully controlled heat treatment process, it achieves enhanced hardness, oxidation resistance, and long-lasting durability, making it perfect for extreme heat and pressure situations.
| SA213 T92 Tube Standard | ASTM A213 T92, SA213 T92 (with IBR Test Certificate) |
|---|---|
| SA213 T92 Tube Specifications | ASTM A213 & ASTM A209 (T1 , Ta, T1b) BS/3059/90/PartII/620 & 622 DIN/17175/13CrMo44 DIN/17175/10CrMo910 DIN/17175/15Mo3 |
| Size | 6.35 mm OD to 101.6 mm OD |
| Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| SA213 T92 Tube Thickness | 3-12mm |
| SA213 T92 Tube Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| SA213 T92 Tube Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| SA213 T92 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T92 Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| SA213 T92 Tube Length | Standard Double & In Cut length also. |
| SA213 T92 Tube End | Plain End, Beveled End, Treaded |
| Specialized in | ASME SA213 T92 Boiler Tube, SA213 T92 Heater Tube, SA213 T92 Heat Exchanger Tube |
| SA213 gr T92 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| SA213 grade T92 Tube Application | Seamless Ferritic Alloy Steel Tube for High-Temperature Service |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | N, % | Ni, % | Al, % | Nb, % | W, % | B, % |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.07-0.13 | 0.3-0.6 | 0.02 max | 0.01 max | 0.5 max | 8.5-9.5 | 0.3-0.6 | 0.15-0.25 | 0.03-0.07 | 0.4 max | 0.04 max | 0.04-0.09 | 1.5-2.0 | 0.001-0.006 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| ASTM A213 T92 Tubing | 585 min | 415 min | 20 min | 250 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Phanuphong Steel is a leading manufacturer and distributor of high-quality Alloy Steel T92 Tubing in Bangkok, Thailand. We offer top-grade steel materials and a broad range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional customer service, we source only the finest raw materials to ensure superior performance in industrial applications with demanding specifications. Contact us today for all your Alloy Steel T92 Tubing needs!
Alloy Steel T92 Tubing is tailor-made for high-temperature, high-pressure applications, particularly in ultra-supercritical and supercritical power plants. It’s frequently utilized in boiler tubes, reheaters, superheaters, and heat exchangers due to its outstanding creep strength and oxidation resistance. In the energy and petrochemical industries, T92 tubing guarantees safe and efficient operation even in the harshest environments. It’s also well-suited for furnace components and other high-efficiency thermal systems. With its long service life and remarkable performance, T92 tubing is a go-to choice for demanding applications.
