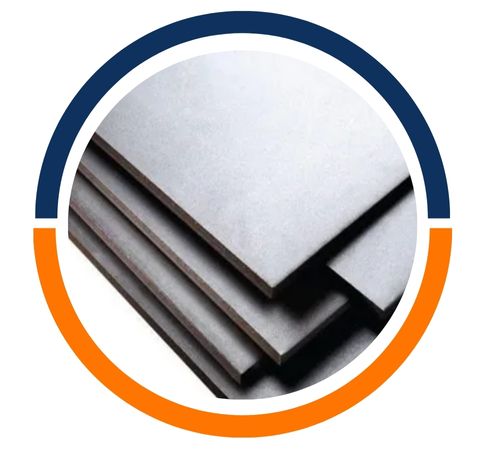

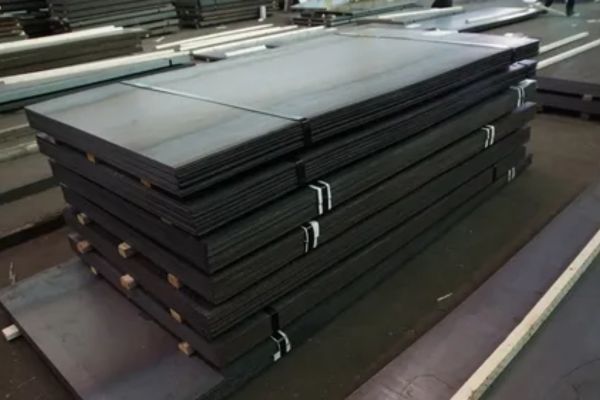

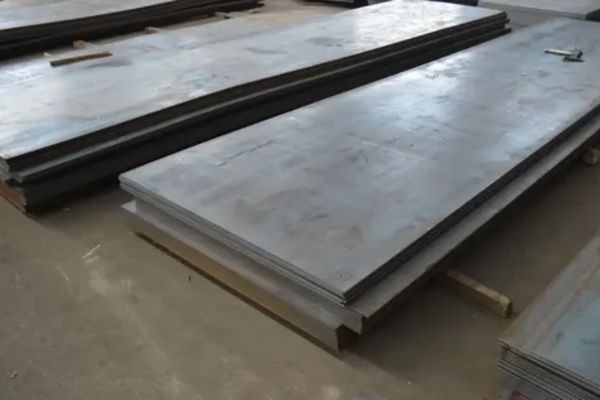

Phanuphong Steel is a well-respected manufacturer and supplier located in Bangkok, Thailand, that specializes in high-quality steel plates, including SA 516 GR.70N NACE and MR 0103-0175 Plates. The company is known for its dedication to meeting international standards, providing plates that fulfill rigorous industrial needs. The SA 516 GR.70N plates are specifically crafted for high-pressure applications at moderate and low temperatures, ensuring both reliability and safety. With certifications like NACE and MR 0103-0175 compliance, these plates are perfect for industries that require resistance to hydrogen-induced cracking and sulfide stress corrosion, making them a trusted option around the globe.
The SA 516 GR.70N NACE and MR 0103-0175 Plates are primarily made up of carbon, manganese, phosphorus, sulfur, and silicon, which together provide a balanced mix of strength and toughness. Thanks to their controlled carbon content, these plates boast excellent weldability and notch toughness. In terms of mechanical properties, they offer a tensile strength range of 485–620 MPa and a yield strength of about 260 MPa, ensuring high durability. They undergo normalization to improve their resistance to brittle fracture, and their adherence to NACE and MR 0103-0175 standards guarantees outstanding resistance to hydrogen-induced cracking and sulfide stress corrosion cracking, making them ideal for pressure vessel and boiler applications.
| Grade | ASME SA 516 GR.70N Boiler and Pressure Vessel Steel Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |

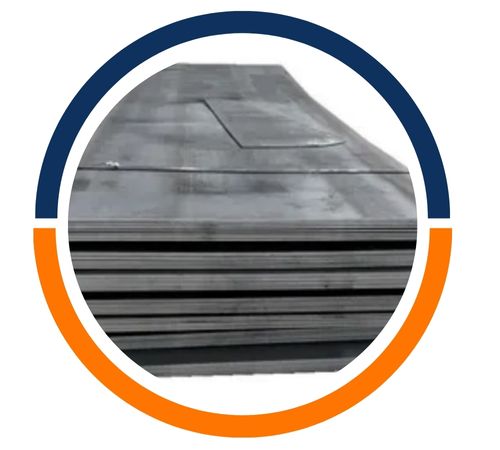

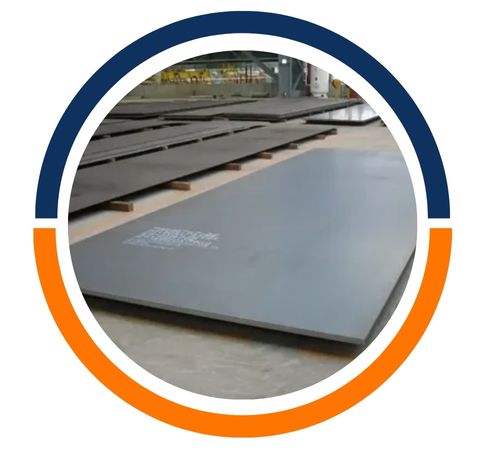

| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
Phanuphong Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.70N NACE and MR 0103-0175 Plates in Bangkok, Thailand. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.70N NACE and MR 0103-0175 Plates needs!
SA 516 GR.70N NACE and MR 0103-0175 Plates find extensive use in industries where safety, durability, and resistance to harsh conditions are essential. They are commonly utilized in pressure vessels, boilers, and storage tanks within the oil, gas, and petrochemical sectors. Their ability to resist hydrogen-induced cracking and sulfide stress corrosion makes them particularly well-suited for sour gas environments. Power generation plants, refineries, and chemical industries also favor these plates for their strength and reliability. Additionally, they are employed in marine applications and heat exchangers, further showcasing their versatility and dependability.
