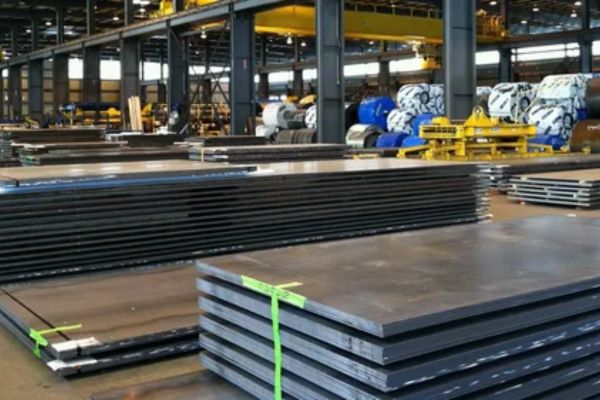

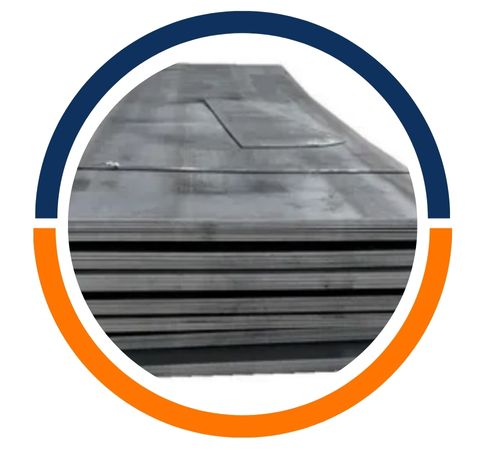

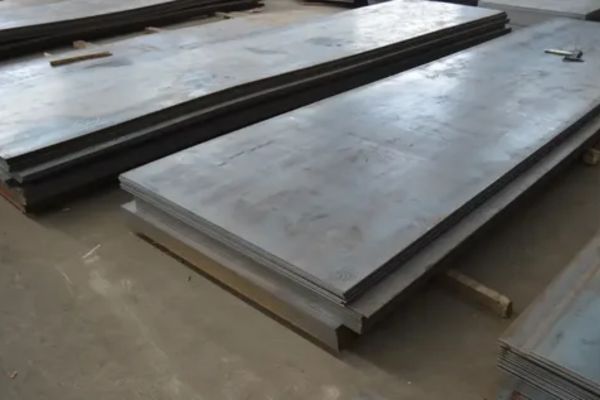

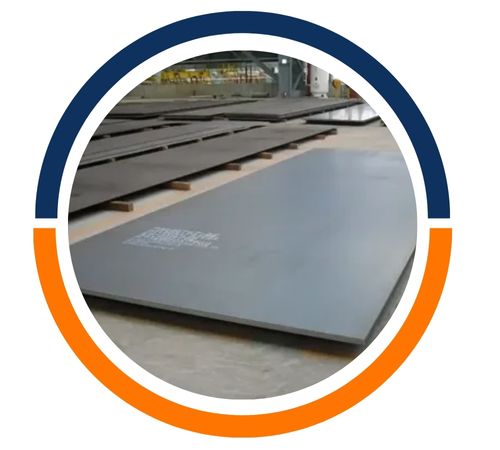

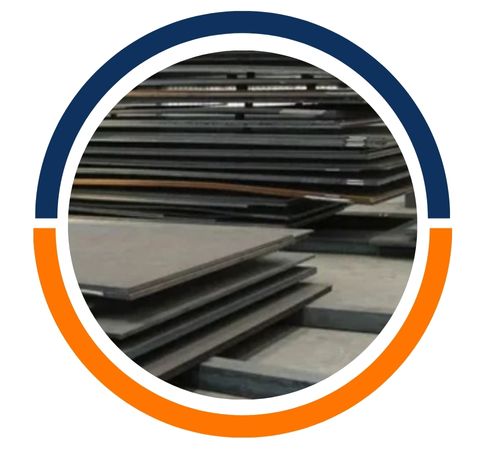

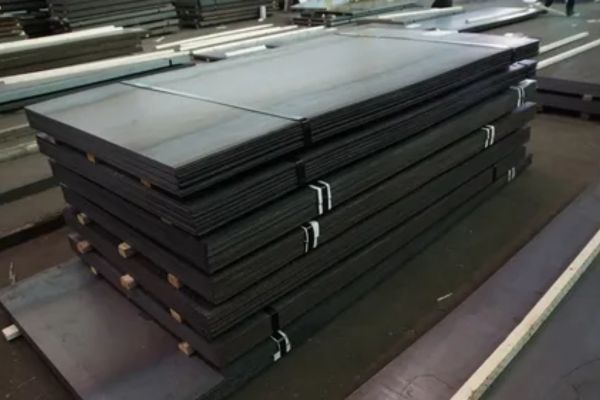

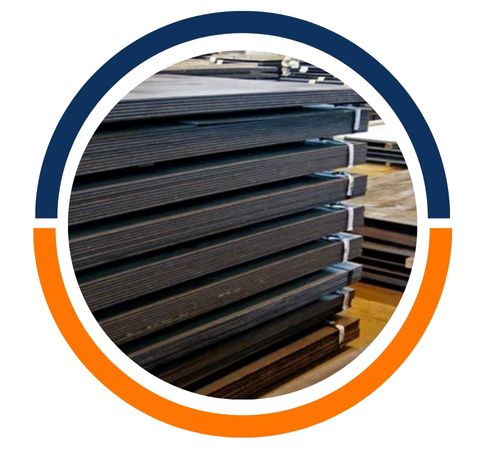

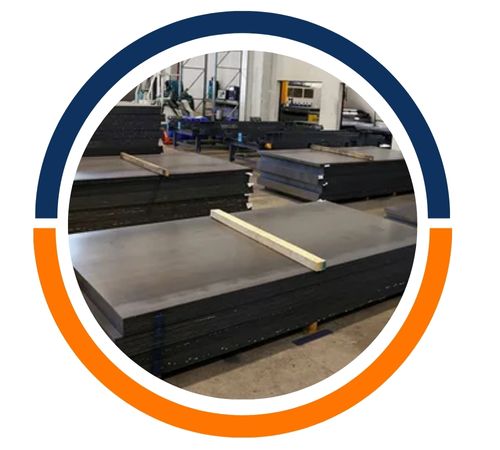

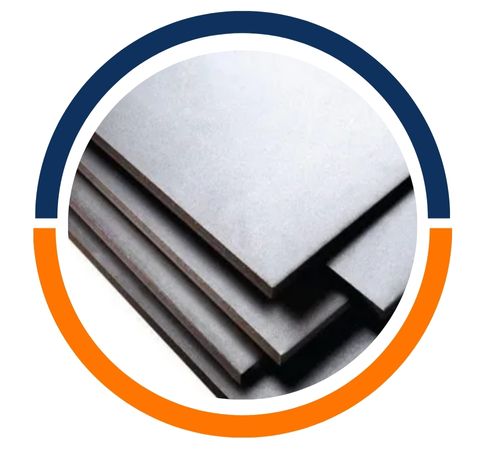

Phanuphong Steel is a reputable steel manufacturer and supplier located in Bangkok, Thailand. They focus on delivering top-notch SA 516 GR.65N NACE and MR 0103-0175 plates. With years of experience under their belt, the company is dedicated to providing durable and reliable steel plates that adhere to international standards, especially for industries that demand exceptional performance in tough conditions. These plates are produced with rigorous quality control to ensure they resist hydrogen-induced cracking and sulfide stress corrosion, making them perfect for use in the oil, gas, and petrochemical sectors, where safety and reliability are crucial.
The SA 516 GR.65N NACE and MR 0103-0175 plates are mainly made up of carbon, manganese, silicon, phosphorus, and sulfur, all in carefully controlled amounts, along with some trace alloying elements to boost strength. They undergo a normalization process to enhance toughness and structural integrity. These plates are known for their excellent weldability, impressive tensile strength (ranging from 450 to 585 MPa), and a yield strength of about 260 MPa. Their outstanding notch toughness guarantees safe operation in both low-temperature and high-pressure settings. Meeting the NACE MR0175 standards, these plates are designed to resist hydrogen-induced cracking (HIC) and sulfide stress corrosion, ensuring dependable performance in challenging environments.
| Grade | ASME SA 516 GR.65N Boiler and Pressure Vessel Steel Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.08/0.20 | 0.4 | 0.9/1.5 | 0.03 | 0.03 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Tensile strength (MPa) | Yield strength (ksi) | Yield strength (MPa) | Elongation in 200mm (min)(%) | Elongation in 50mm (min) (%) |
| 65-85 | 450-585 | 35 | 240 | 19 | 23 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-224-460A/B | EN10028 P295GH | A/SA516 – Grade 65 | DIN 17155 17 MN 4 |
Phanuphong Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.65N NACE and MR 0103-0175 Plates in Bangkok, Thailand. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.65N NACE and MR 0103-0175 Plates needs!
SA 516 GR.65N NACE and MR 0103-0175 plates find extensive use in industries that need to withstand sour gas and corrosive conditions. They are commonly utilized in the construction of pressure vessels, boilers, storage tanks, heat exchangers, and separators in oil refineries, gas processing facilities, and chemical plants. Their resistance to HIC and sulfide stress cracking makes them an excellent choice for both upstream and downstream applications in the oil and gas industry. Additionally, they are employed in pipelines, reactors, and offshore structures, ensuring safe and reliable operations.
