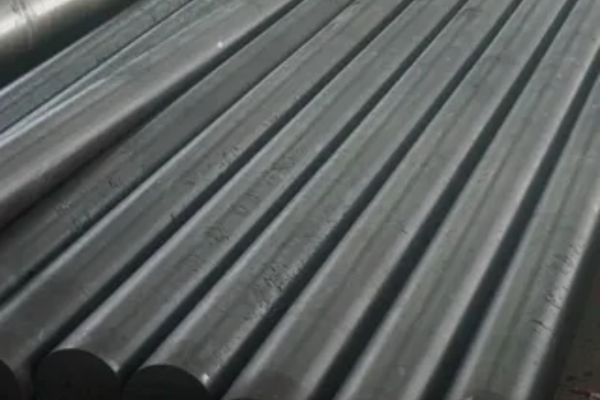

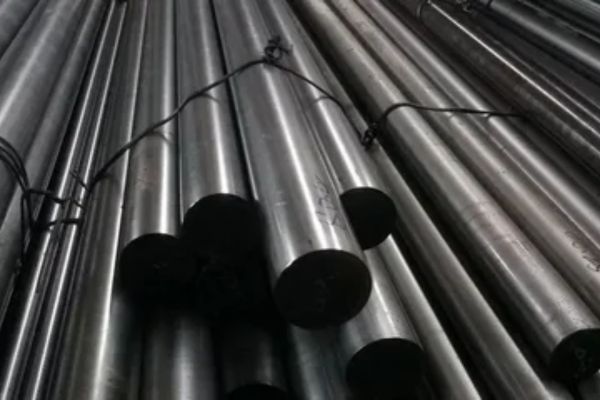

Phanuphong Steel and Plates, a top-notch manufacturer and supplier based in Bangkok, Thailand, is all about delivering high-quality Carbon Steel EN-31 Bars. These bars are celebrated for their impressive hardness, durability, and wear resistance. Crafted with cutting-edge technology and rigorous quality checks, they meet international standards with ease. Phanuphong Steel prides itself on reliability, providing bars that boast an excellent surface finish and precise dimensions. With a strong focus on customer satisfaction and prompt delivery, the company serves industries around the globe, making Carbon Steel EN-31 Bars a fantastic option for engineering, automotive, and industrial applications that demand strength and toughness.
When it comes to composition, Carbon Steel EN-31 Bars contain about 0.90–1.20% carbon and 0.90–1.60% chromium, along with small amounts of manganese, silicon, and trace elements like sulfur and phosphorus. This alloy steel is known for its high tensile strength and hardness while still maintaining decent toughness. Its mechanical properties include a tensile strength range of 750–1000 MPa, solid compressive strength, and excellent wear resistance. With the right heat treatment, it achieves remarkable toughness and fatigue strength, making it perfect for heavy-duty applications that require top performance under pressure.
| Grade | En31 |
|---|---|
| Specification | 100Cr6, AISI SAE E52100, 100Cr6, 2258, 100C6 |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, peeled, slit rolled edge, hot rolled, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | en31 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | en31 Welding Rod, Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our stockyad location for fast delivery across India | Surendranagar, Rajkot, Ranjangaon, Indore, Ahmedabad, Bhosari, Surat, Baroda, Chennai, Chakan, Hyderabad, Ahmednagar, Ajmer, Kolhapur, Thane, Belgaum, Kadi, Aurangabad, Pune, Hubli Mumbai, Nagpur, Jaipur, Nashik, Navi Mumbai |
| Carbon | 0.95 / 1.10 |
| Manganese | 0.40 / 0.70 |
| Silicon | 0.10 / 0.35 |
| Sulfur | Max 0.050 |
| Phosphorus | Max 0.040 |
| Chromium | 1.20 – 1.60 |
| Thermal Conductivity at °C | 20 | 350 | 700 |
| W/(m*K) | 44.5 | 45.0 | 46.0 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cut to size on request (tolerance +2/-0 mm). Standard lengths of en31 Bars 2000 mm up to 6000 mm available | |||
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Carbon Steel EN-31 Bars find their way into various industries thanks to their outstanding hardness, strength, and abrasion resistance. In the automotive sector, they’re used to manufacture bearings, gears, axles, crankshafts, spindles, and other vital components that face wear and stress. In engineering, they shine in the production of cutting tools, dies, and rollers due to their high compressive strength. Heavy machinery industries favor EN-31 bars for shafts, fasteners, and precision parts. Their ability to endure high stress and wear makes them indispensable for applications that demand durability and performance.
