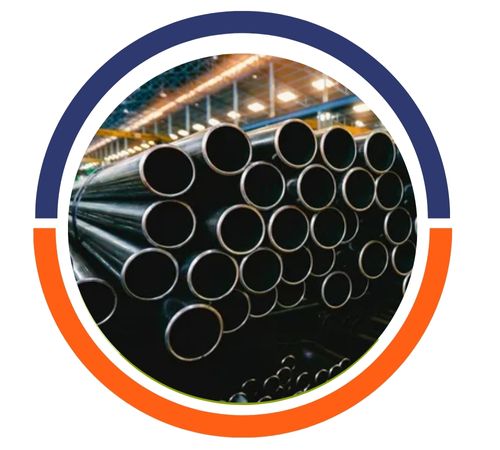

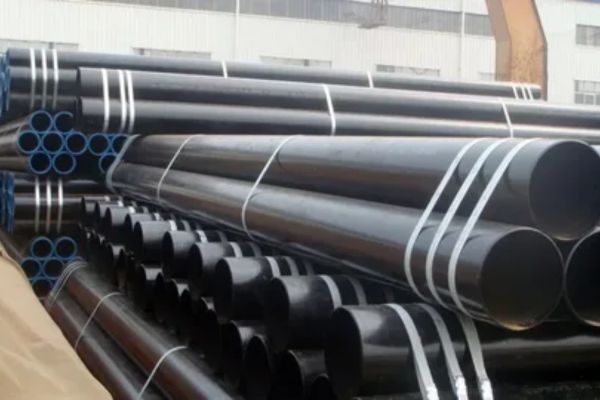

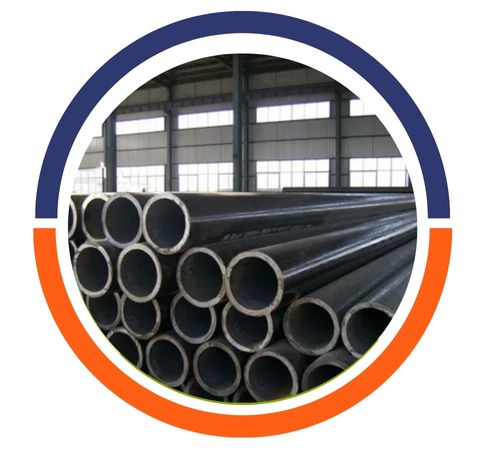

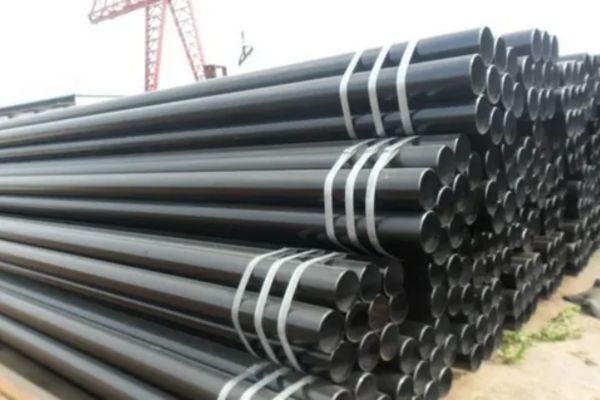

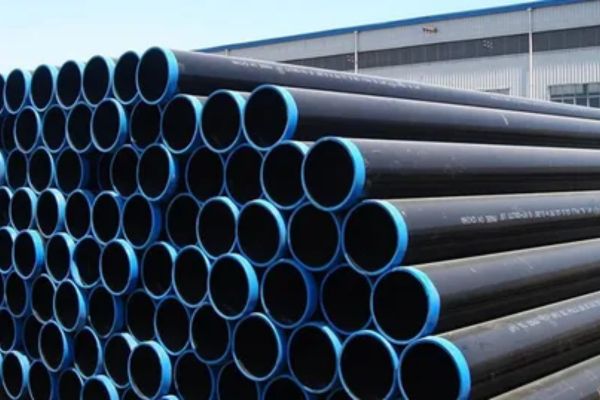

Phanuphong Steel and Plates, a reputable manufacturer and supplier based in Bangkok, Thailand, is dedicated to providing top-notch Carbon Steel A106 Gr C Pipes. These pipes are well-known for their durability, reliability, and outstanding performance in high-temperature and high-pressure settings. Crafted with precision, they adhere to international standards and undergo rigorous testing to guarantee strength, resistance, and precise dimensions. Phanuphong Steel and Plates is focused on supporting industries such as oil, gas, petrochemical, and power generation, delivering exceptional products that offer long-lasting solutions for complex industrial needs around the globe.
The Carbon Steel A106 Gr C Pipes are primarily made up of carbon, manganese, phosphorus, sulfur, and silicon, all in carefully controlled proportions to ensure both strength and toughness. They boast impressive mechanical properties, including a high tensile strength that ranges from 485 to 620 MPa and a yield strength of about 250 MPa, which ensures they can handle significant loads. Additionally, they demonstrate good elongation, hardness, and remarkable resistance to stress and pressure. These characteristics make them perfect for transporting fluids and gases under high temperatures and challenging conditions.
| Standard Specification | ASTM A 106, ASME SA 106 (Grade C) |
| Codes and Standards | ANSI, ASME, ASTM, API, SAE, BS, AGA, AWWA, ISO, DIN |
| Dimensions | ASME/ ANSI B36.10 / 19 |
| Standard Size | 1/2” NB to 36” NB (LSAW, SSAW, HSAW) |
| Wall Thickness | 3-12mm |
| Pipes schedules | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Producing techniques | Seamless / ERW / Welded / Fabricated / CDW / EFW |
| Types | Round, Half Round, Square, Rectangular or Custom shape |
| Length | 3 to Max18 Meters or custom |
| End | Beveled End, Plain End, Treaded |
| Test Certificate | EN 10204 3.1 B |
| Grade | MFG. | C max | Mn* | P max | S max | Si min | Cr˟ max | Cu˟ max | Ni˟ max | Mo˟ max | V˟ max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | SMLS | 0.35* | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| Grade | Process | Tensile Strength (MPa) Min | Yield Strength (MPa) Min | Elongation in 2” (%) MinimumLong. Strip Test | Elongation in 2” (%) MinimumTrans. Strip Test |
|---|---|---|---|---|---|
| C | SMLS | 70,000 [485] | 40,000 [275] | 30 | 16.5 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Minimal Pipes Size [DN Designator] | Under | Over | ||
| mm | in. | mm | in. | |
| 1/8 to 1-1/2 [6 to 40], incl | 0.4 | 1/64 (0.015) | 0.4 | 1/64 (0.015) |
| Over 1-1/2 to 4 [40 to 100], incl | 0.8 | 1/32 (0.031) | 0.8 | 1/32 (0.031) |
| Over 4 to 8 [100 to 200], incl | 0.8 | 1/32 (0.031) | 1.6 | 1/16 (0.062) |
| Over 8 to 18 [200 to 450], incl | 0.8 | 1/32 (0.031) | 2.4 | 3/32 (0.093) |
| Over 18 to 26 [450 to 650], incl | 0.8 | 1/32 (0.031) | 3.2 | 1/8 (0.125) |
| Over 26 to 34 [650 to 859], incl | 0.8 | 1/32 (0.031) | 4.0 | 5/32 (0.156) |
| Over 34 to 48 [850 to 1200], incl | 0.8 | 1/32 (0.031) | 4.8 | 3/16 (0.187) |
Phanuphong Steel is a top manufacturer and supplier of high-quality Carbon Steel A106 Gr C Pipe products in Bangkok, Thailand. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
These pipes find extensive use in industries that demand seamless solutions for high-temperature and high-pressure operations. They’re commonly utilized in oil refineries, power plants, petrochemical facilities, boilers, and shipbuilding sectors. Thanks to their exceptional mechanical strength and durability, they are ideal for moving steam, water, oil, and gases in tough environments. Moreover, these pipes are perfect for process piping, heat exchangers, and pressure vessels. Their versatility and reliability ensure safe and efficient operation, making them a crucial component in vital industrial infrastructure.
