Carbon Steel A106 Gr B Pipe Manufacturer and Supplier in Bangkok, Thailand

Carbon Steel A106 Gr B Pipe

Worldwide Shipping

Largest
Inventory

Modern
Equipments

Expert
Engineers

Efficient Factories

Well
Maintained

Phanuphong Steel and Plates, a prominent manufacturer and supplier located in Bangkok, Thailand, is dedicated to providing top-notch Carbon Steel A106 Gr B Pipes tailored to meet a variety of industrial needs. With a strong focus on quality, the company delivers robust and dependable piping solutions that comply with international standards. Carbon Steel A106 Gr B Pipes are well-known for their strength, durability, and efficiency in managing high-pressure and high-temperature situations. Phanuphong Steel prides itself on timely deliveries, competitive pricing, and exceptional customer service, making it a reliable partner for industries such as oil and gas, petrochemicals, power generation, and construction.

Carbon Steel A106 Gr B Pipes Exporter in Thailand, Carbon Steel A106 Gr B Pipes Price List in Bangkok, ASTM A106 Gr B Pipes Supplier in Chiang Mai, Carbon Steel A106 Gr B Pipes Exporter in Pattaya, CS A106 Gr B Pipes Exporter in Rayong, Carbon Steel A106 Gr B Pipes Size Chart, ASME SA 106 Grade A Pipes Price in Nonthaburi, Carbon Steel A106 Gr B Pipes Weight Chart, Carbon Steel A106 Gr B Pipes Thickness, ASTM A106 Gr B Pipes Supplier in Thailand

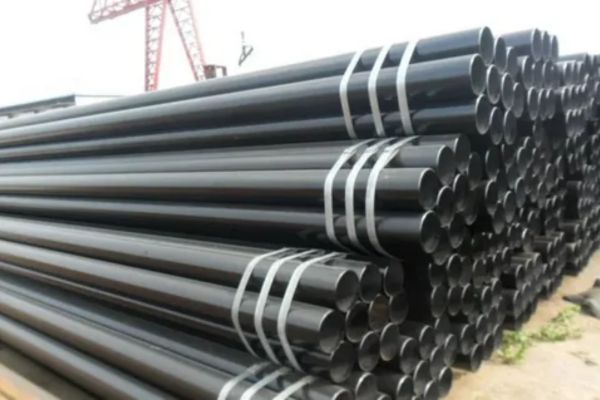

CS A106 Gr B Seamless Pipes

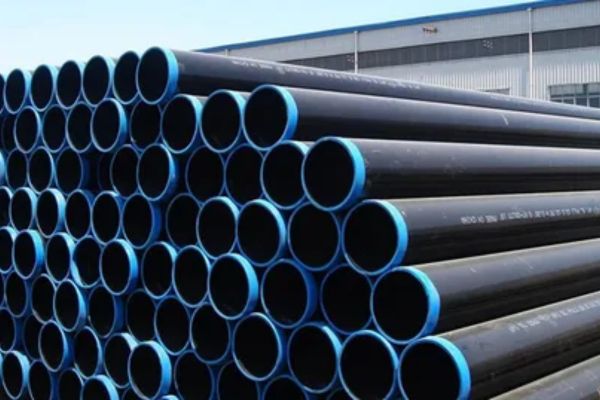

CS A106 Gr B Welded Pipes

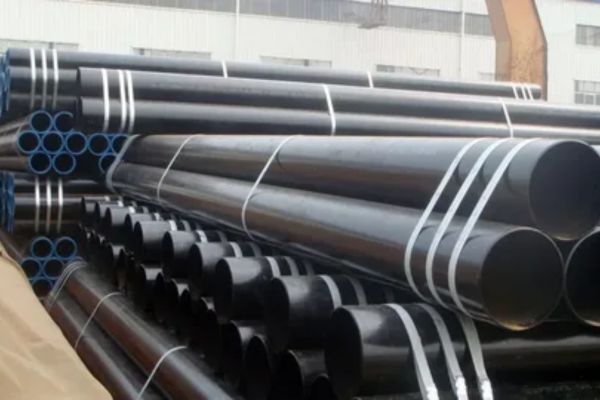

CS A106 Gr B EFW Pipes

What is Carbon Steel A106 Gr B Pipe?

The Carbon Steel A106 Gr B Pipe is mainly made up of carbon, manganese, phosphorus, sulfur, silicon, and a few trace elements that boost its strength and workability. It boasts impressive tensile and yield strength, good elongation, and resistance to impact. With its outstanding mechanical properties, this pipe is built to endure high pressure and elevated temperatures, making it ideal for seamless construction. Its combination of toughness and ductility ensures it performs well in challenging environments. The chemical makeup and structural integrity of the material make it a trustworthy option for transporting fluids and gases in critical industrial operations.

CS A106 Gr B Pipes Supplier in Bangkok, ASTM A106 Gr B Pipes Exporter in Chiang Mai, ASME SA 106 Grade A Pipes Manufacturer in Pattaya, Carbon Steel A106 Gr B Pipes Price List in Thailand, ASTM A106 Gr B Pipes Sizes in mm, ASME SA 106 Grade A Pipes Distributor in Rayong, Carbon Steel A106 Gr B Pipes in Nonthaburi, ASTM A106 Gr B Pipes Supplier in Pattaya, Carbon Steel A106 Gr B Pipes Distributor in Thailand

Carbon Steel A106 Gr B Pipe Specification

Standards	ASTM, ASME and API, ANSI B 36.10
Grades	ASTM A106 Grade A, ASTM A106 Grade B, ASTM A106 Grade C
Size	1/2” NB to 36” NB
Thickness	3-12mm
Schedules	SCH 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
Origin	European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)
Tolerance	Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm
Craft	Cold rolled and Cold drawn
Type	Seamless / ERW / Welded / Fabricated
Form	Round, Hydraulic Etc
Length	Min 3 Meters, Max18 Meters, or according to customer’s requirement
End	Plain End, Beveled End, Treaded
Specialized in	Large Diameter ASTM A106 Grade B Pipe
Additional Testing	Mill Test Certificates, EN 10204 3.1, Chemical /Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate, NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR
ASME Standard	B36.10M Welded and Seamless Wrought Steel Pipe
ANSI Standard	B1.20.1 Pipe Threads, General Purpose

Carbon Steel A106 Gr B Pipe Chemical Composition

Element	ASTM A106 Carbon Steel Gr. B
C	0.30
Mn	0.29-1.06
P	0.04
S	0.04
Cu	0.40
Ni	0.40
Cr	0.4
Mo	0.15
V	0.08

Carbon Steel A106 Gr B Pipe Mechanical Properties

Element	ASTM A106 Carbon Steel Gr. B
Tensile Strength	60,000 (415) MPa
Yield Strength (0.2%Offset)	35,000 (240) MPa

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Carbon Steel A106 Gr B Pipe Weight Chart

Size	Other Diameter	Pipe I.D.	WT	Standard to XXHY	Weight	Section Modulus	Schedule Pipe #	Gallon
1/2	0.84	0.622	0.109	STD	0.85	.0407	40	.0158
		0.546	0.147	XHY	1.09	.0478	80	.0122
		0.464	0.188		1.31	.0528	160	.0088
3/4	1.05	0.824	0.113	STD	1.13	.0705	40	.0277
		0.742	0.154	XHY	1.48	.0853	80	.0225
		0.612	0.219		1.95	.1006	160	.0153
1	1.315	1.049	0.133	STD	1.68	.1328	40	.0449
		0.957	0.179	XHY	2.17	.1606	80	.0374
		0.815	0.250		2.85	.1904	160	.0271
1 1/4	1.66	1.380	0.140	STD	2.27	.2346	40	.0777
		1.278	0.191	XHY	3.00	.2913	80	.0666
		1.160	0.250		3.77	.3421	160	.0549
1 1/2	1.90	1.610	0.145	STD	2.72	.3262	40	.1058
		1.500	0.200	XHY	3.63	.4118	80	.0918
		1.338	0.281		4.86	.5079	160	.0730
2	2.375	2.157	0.109		2.64	.4205	10	.1898
		2.067	0.154	STD	3.66	.5606	40	.1743
		1.939	0.218	XHY	5.03	.7309	80	.1534
		1.875	0.250		5.68	.8045		.1434
		1.813	0.281		6.29	.8666		.1344
		1.687	0.344		7.47	.9806	160	.1161
2 1/2	2.875	2.635	0.120		3.53	.6870	10	.2833
		2.469	0.203	STD.	5.80	1.0640	40	.2487
		2.443	0.216		6.14	1.1169		.2435
		2.375	0.250		7.02	1.2468		.2301
		2.323	0.276	XHY	7.67	1.3386	80	.2202
		2.125	0.375		10.02	1.6371	160	.1842
3	3.50	3.260	0.120		4.34	1.0411		.4336
		3.188	0.156		5.58	1.3122		.4147
		3.156	0.172		6.12	1.4265		.4064
		3.124	0.188		6.66	1.5342		.3984
		3.068	0.216	STD.	7.58	1.7241	40	.3840
		3.000	0.250		8.69	1.9372		.3672
		2.938	0.281		9.67	2.1207		.3521
		2.900	0.300	XHY	10.26	2.2253	80	.3431
		2.624	0.438		14.34	2.8774	160	.2811
3 1/2	4.0	3.760	0.120		4.98	1.3776	10	.5768
		3.548	0.226	STD.	9.12	2.3939	140	.5136
		3.500	0.250		10.02	2.6001		.4998
		3.438	0.281		11.17	2.8562		.4821
		3.364	0.318	XHY	12.52	3.1400	80	.4617
4	4.5	4.260	0.120		5.62	1.7612	10	.7404
		4.188	0.156		7.24	2.2354		.7156
		4.124	0.188		8.67	2.6296		.6942
		4.094	0.203		9.32	2.8173		.6838
		4.062	0.219		10.02	3.0184		.6725
		4.026	0.237	STD.	10.80	3.2145	40	.6613
		4.000	0.250		11.36	3.3611		.6528
		3.938	0.281		12.67	3.7021	60	.6326
		3.876	0.312		13.97	4.0273		.6126
		3.826	0.337	XHY	15.00	4.2713	80	.5972
		3.624	0.438		19.02	5.1790	120	.5361
		3.438	0.531		22.53	5.8997	160	.4822
5	5.563	5.187	0.188		10.80	4.1161		1.0979
		5.125	0.219		12.51	4.7279		1.0716
		5.047	0.258	STD.	14.63	5.4500	40	1.0391
		5.001	0.281		15.87	5.8644		1.0204
		4.939	0.312		17.51	6.4074		.99647
		4.875	0.344		19.19	6.9358		.9696
		4.813	0.375	XHY	20.80	7.4300	80	.9449
		4.563	0.500		27.06	9.2534	120	.8495
		4.313	0.625		32.99	10.7976	160	.7590
6	6.625	6.407	0.109		7.59	3.5769	5	1.6748
		6.357	0.134		9.30	4.3475	10	1.6488
		6.313	0.156		10.79	5.0107		1.6260
		6.249	0.188		12.94	5.9351		1.5937
		6.219	0.203		13.94	6.3804		1.5780
		6.187	0.219		15.00	6.8261		1.5620
		6.125	0.250		17.04	7.6905		1.5306
		6.065	0.280	STD.	18.99	8.4958	40	1.5008
		6.001	0.312		21.06	9.3416		1.4688
		5.937	0.344		23.10	10.111		1.4391
		5.875	0.375		25.05	10.893		1.4082
		5.761	0.432	XHY	28.60	12.224	80	1.3541
		5.625	0.500		32.74	13.711		1.2909
		5.501	0.562		36.43	14.9806	120	1.2346
		5.375	0.625		40.09	16.1821		1.1787
		5.187	0.719		45.39	17.8243	160	1.0977
		4.897	0.864	XXHY	53.21	20.025		.9784
		4.625	1.000		60.13	21.7719		.8727
		4.375	1.125		66.14	23.1237		.7809

Top Manufacturer and Supplier of Carbon Steel A106 Gr B Pipe in Bangkok, Thailand

Phanuphong Steel is a top manufacturer and supplier of high-quality Carbon Steel A106 Gr B Pipe products in Bangkok, Thailand. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.

Carbon Steel A106 Gr B Pipes Price List in Thailand, ASTM A106 Gr B Pipes Distributor in Rayong, Carbon Steel A106 Grade B Pipes in Nonthaburi, Carbon Steel A106 Gr B Pipes Supplier in Pattaya, Carbon Steel A106 Gr B Pipes Distributor in Thailand, ASME SA 106 Grade A Pipes Stockist in Chiang Mai, Carbon Steel A106 Gr B Pipes Supplier in Bangkok, Carbon Steel A106 Gr B Pipes Exporter in Chiang Mai, ASTM A106 Gr B Pipes Sizes in mm, CS A106 Gr B Pipe Manufacturer in Pattaya

Types of Carbon Steel A106 Gr B Pipe

CS A106 Gr B Pipes Exporter in Rayong, ASTM A106 Gr B Pipes Size Chart, Carbon Steel A106 Gr B Pipes Price in Nonthaburi, Carbon Steel A106 Grade B Pipes Weight Chart, ASTM A106 Gr B Pipes Thickness,Carbon Steel A106 Pipe Supplier in Thailand, CS A106 Gr B Pipes Stockist in Chiang Mai, ASTM A106 Gr B Pipes Exporter in Thailand, Carbon Steel A106 Gr B Pipes Price List in Bangkok, Carbon Steel A106 Gr B Pipes Supplier in Chiang Mai, Carbon Steel A106 Gr B Pipes Exporter in Pattaya

Uses of Carbon Steel A106 Gr B Pipe

Carbon Steel A106 Gr B Pipe finds extensive use in industries that require seamless piping for high-temperature and high-pressure applications. It’s commonly utilized in oil refineries, petrochemical plants, power generation facilities, and boiler systems. This pipe is also effective for transporting water, steam, gas, and other fluids in essential operations. Its durability and cost-effectiveness make it a popular choice for structural applications in construction and engineering projects. Moreover, it plays a vital role in pipelines, heat exchangers, and pressure vessels, ensuring efficiency and safety in industrial processes.
