Phanuphong Steel and Plates, a top-notch manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality Alloy Steel AISI 8620 Bars that are crafted to meet strict industrial standards. Known for their precision, durability, and consistency, these bars are made using cutting-edge metallurgical techniques, guaranteeing reliable performance even in tough applications. With a strong focus on both local and global markets, Phanuphong Steel delivers dependable solutions for the automotive, machinery, and engineering industries. Their dedication to quality, prompt delivery, and outstanding customer service makes them a go-to choice for clients looking for premium alloy steel products in Thailand and beyond.
Alloy Steel AISI 8620 Bars are primarily composed of carbon (0.18–0.23%), manganese (0.60–0.80%), chromium (0.40–0.60%), nickel (0.40–0.70%), and molybdenum (0.15–0.25%). This blend results in a well-rounded mix of toughness, hardness, and wear resistance. Mechanically, these bars boast a tensile strength between 620 and 850 MPa, a yield strength of 370–510 MPa, and an elongation of about 15–20%. Their hardenability allows for effective heat treatment, yielding a robust, durable core with a tough, wear-resistant exterior. Additionally, the bars show impressive fatigue strength, impact resistance, and dimensional stability, making them ideal for applications that demand both strength and toughness under pressure.
| AISI 8620 Steel Round Bar Plate Sheet Supply Range | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Specification | Surface | |||||||||||||||||

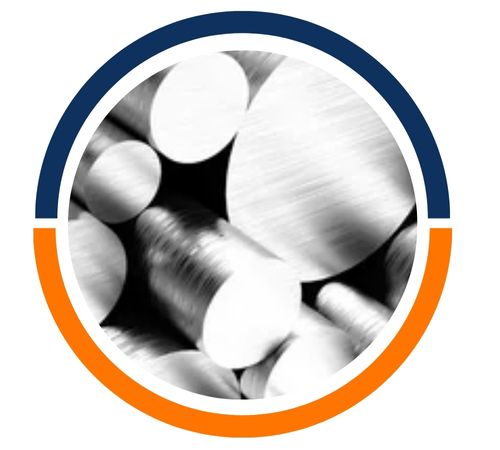

| Round Bar | Diameter: 16mm – 800mm; length: 2000mm-5000mm Other specifications can be customized. | Black Surface/Bright Surface/ Grinded/Peeled/Turned | |||||||||||||||||
| Sheet/Plate/Slab | Thickness: 16-800mm; width: 205mm-810mm; length: 2000mm-5000mm Other specifications can be customized. | Black Surface/Bright Surface/ Grinded/Peeled/Turned | |||||||||||||||||
| STAND | C(%) | Mn(%) | P(%) | S(%) | Si(%) | Cr(%) | Mo(%) | Ni(%) |
|---|---|---|---|---|---|---|---|---|
| ASTM A29/A29M-05 | 0.18-0.23 | 0.70-0.90 | ≤0.035 | ≤0.040 | 0.15-0.35 | 0.40-0.60 | 0.15-0.25 | 0.40-0.70 |
| EN 10084-2008 | 0.17-0.23 | 0.65-0.95 | ≤0.025 | ≤0.035 | 0.40 | 0.35-0.70 | 0.15-0.25 | 0.40-0.70 |
| JIS G4053-2008 | 0.17-0.23 | 0.60-0.90 | Max0.030 | Max0.030 | 0.15-0.35 | 0.40-0.60 | 0.15-0.25 | 0.40-0.70 |
| ISO 683/11:1987 | 0.17-0.23 | 0.65-0.95 | ≤0.035 | ≤0.035 | 0.15-0.40 | 0.30-0.65 | 0.15-0.25 | 0.40-0.70 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 530 MPa | 76900 psi |
| Yield strength | 385 MPa | 55800 psi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Izod Impact | 115 J | 84.8 ft.lb |
| Hardness, Brinell | 149 | 149 |
| Hardness, Knoop (converted from Brinell hardness) | 169 | 169 |
| Hardness, Rockwell B (converted from Brinell hardness) | 80 | 80 |
| Hardness, Vickers (converted from Brinell hardness) | 155 | 155 |
| Machinability (hot rolled and cold drawn, based on 100 machinability for AISI 1212 steel) | 65 | 65 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Country | USA | Germany/Thailand/France | JAPAN | ISO |
|---|---|---|---|---|
| Standard | ASTM A29/A29M-05 | EN 10084-2008 | JIS G4053-2008 | ISO 683/11:1987 |
| Grades | 8620 | 20NiCrMo2-2 (1.6523) | SNCM220 | 20NiCrMo2 |
Alloy Steel AISI 8620 Bars are commonly utilized in automotive parts like gears, shafts, and crankshafts, thanks to their exceptional wear resistance and strength. They also play a crucial role in manufacturing machinery components such as bushings, pins, and couplings, where toughness and fatigue resistance are vital. Furthermore, these bars are used in heavy equipment, aerospace parts, and industrial tools, providing reliable performance under high stress and varying loads. Their ability to undergo carburizing and other heat treatments makes them versatile for engineering projects, ensuring a long service life.
Phanuphong Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Bangkok, Thailand.
