Phanuphong Steel and Plates, located in the vibrant city of Bangkok, Thailand, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Alloy Steel AISI 4340 Bars. Known for their unwavering dedication to precision and dependability, this company serves a variety of industrial sectors, providing steel bars that adhere to strict global standards. With state-of-the-art production facilities and a talented workforce, Phanuphong Steel guarantees consistent quality, durability, and performance in their materials. Their Alloy Steel AISI 4340 Bars are designed to deliver exceptional strength, toughness, and wear resistance, making them a go-to choice for engineers and manufacturers in need of trustworthy steel solutions for demanding applications.
These Alloy Steel AISI 4340 Bars typically contain 0.38–0.43% carbon, 0.70–0.90% manganese, 0.20–0.30% silicon, 0.70% nickel, 0.20–0.30% chromium, and 0.08% molybdenum. This unique blend of elements results in outstanding hardenability, high tensile strength, and impressive toughness. They boast a yield strength of around 470–635 MPa and an ultimate tensile strength that ranges from 745–1080 MPa, along with commendable fatigue resistance. When heat-treated, these bars further enhance their mechanical properties, making them suitable for high-stress applications. Additionally, the steel shows good wear resistance, moderate corrosion resistance, and reliable performance under dynamic loads, ensuring longevity in tough industrial settings.
| Sizes | 2-100mm A/F |
|---|---|
| Tolerance | H9, H8, H10, K12, H13K9, K10, H11, H12, K11 |

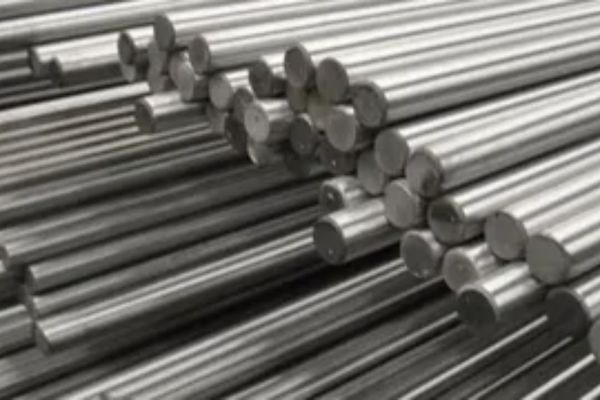

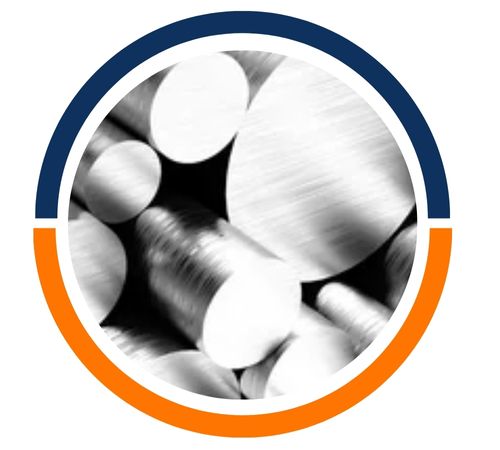

| Round bar Sizes | Diameter: 3-~800mm |
| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged, Rod |
| Processing | Bar cutting to 650mm |
| Surface | Bright, Hot Rolled Pickled, Sand Blasting Finished, Hairline, Cold Drawn, Polished suppliers |
| Condition | Hardened and tempered, annealed |
| Form | Precision Square, Ingot, T-Bar, Rod, Round, Welding Rod, I/H Bar, Flat Bar, Blocks, Rings, Rectangle, Hex (A/F), Hollow, Threaded, Profiles, Ground Bar, Channel Bar, Billet, Triangle, Round Rod, Half Round Bar, Forging etc. |

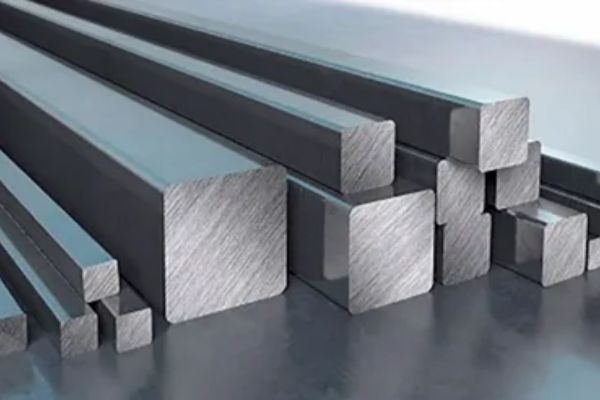

| Square bar Sizes | 4 to 100mm |
| Finish | Hot rolled annealed, Bright, smooth turned, Polish, Rough Turned, Cold (bright) drawn, centreless ground, Grinding, peeled, hot rolled, slit rolled edge, Centreless Ground & Black. |
| Flat bar Sizes | Width: 10 – 500 millimeter Thick.: 2 to 100 millimeter |
| C | Mn | Si | S | P | Cr | Ni | Mo | |
| SAE – 4340 | .38- .43 | .60 – .80 | .15 – .35 | .035 MAX | .040 MAX | .70 – .90 | 1.65 -2.00 | .20 – .30 |
| Tensile strength kgf/mm² | Yield strength kgf/mm² | Elongation % | Cross section reduction rate % | Impact value | Hardness Hb |
|---|---|---|---|---|---|
| ≧100 | ≧90 | ≧16 | ≧45 | ≧7 | 293~352 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| SIZE IN INCHES | ROUND | SQUARE | OCTAGON | HEXAGON | SIZE IN INCHES | ROUND | SQUARE | OCTAGON | HEXAGON |
| 1/16 | .010 | .013 | .011 | .012 | 11/16 | 1.262 | 1.607 | 1.333 | 1.392 |
| 5/64 | .017 | .022 | .018 | .019 | 45/64 | 1.320 | 1.681 | 1.394 | 1.456 |
| 3/32 | .023 | .029 | .024 | .025 | 23/32 | 1.380 | 1.756 | 1.487 | 1.521 |
| 7/64 | .031 | .039 | .033 | .034 | 47/64 | 1.440 | 1.834 | 1.521 | 1.588 |
| 1/8 | .042 | .053 | .044 | .046 | 3/4 | 1.502 | 1.913 | 1.586 | 1.656 |
| 9/64 | .053 | .067 | .056 | .058 | 25/32 | 1.630 | 2.075 | 1.721 | 1.797 |
| 5/32 | .065 | .083 | .069 | .072 | 13/16 | 1.763 | 2.245 | 1.862 | 1.944 |
| 11/64 | .079 | .100 | .083 | .087 | 27/32 | 1.901 | 2.421 | 2.008 | 2.096 |
| 3/16 | .094 | .120 | .099 | .104 | 7/8 | 2.045 | 2.603 | 2.159 | 2.254 |
| 13/64 | .110 | .140 | .116 | .121 | 29/32 | 2.193 | 2.792 | 2.316 | 2.418 |
| 7/32 | .128 | .163 | .135 | .141 | 15/16 | 2.347 | 2.988 | 2.479 | 2.588 |
| 15/64 | .147 | .187 | .155 | .162 | 31/32 | 2.506 | 3.191 | 2.646 | 2.763 |
| 1/4 | .167 | .213 | .176 | .184 | 1 | 2.670 | 3.400 | 2.820 | 2.945 |
|---|---|---|---|---|---|---|---|---|---|
| 17/64 | .188 | .240 | .199 | .207 | 1-1/16 | 3.015 | 3.838 | 3.183 | 3.324 |
| 9/32 | .211 | .269 | .223 | .233 | 1-1/8 | 3.380 | 4.303 | 3.569 | 3.727 |
| 19/64 | .235 | .300 | .248 | .259 | 1-3/16 | 3.766 | 4.795 | 3.977 | 4.152 |
| 5/16 | .261 | .332 | .275 | .288 | 1-1/4 | 4.172 | 5.313 | 4.407 | 4.601 |
| 21/64 | .288 | .360 | .304 | .318 | 1-5/16 | 4.600 | 5.857 | 4.858 | 5.072 |
| 11/32 | .316 | .402 | .334 | .348 | 1-3/8 | 5.049 | 6.428 | 5.332 | 5.567 |
| 23/64 | .345 | .439 | .364 | .381 | 1-7/16 | 5.518 | 7.026 | 5.827 | 6.085 |
| 3/8 | .376 | .478 | .397 | .414 | 1-1/2 | 6.008 | 7.650 | 6.345 | 6.625 |
| 25/64 | .408 | .519 | .431 | .450 | 1-9/16 | 6.519 | 8.301 | 6.885 | 7.189 |
| 13/32 | .441 | .561 | .466 | .486 | 1-5/8 | 7.051 | 8.978 | 7.446 | 7.775 |
| 27/64 | .475 | .605 | .502 | .524 | 1-11/16 | 7.604 | 9.682 | 8.030 | 8.385 |
| 7/16 | .511 | .651 | .540 | .564 | 1-3/4 | 8.178 | 10.41 | 8.634 | 9.018 |
| 29/64 | .548 | .698 | .579 | .604 | 1-13/16 | 8.773 | 11.17 | 9.265 | 9.673 |
| 15/32 | .587 | .747 | .620 | .647 | 1-7/8 | 9.388 | 11.95 | 9.911 | 10.35 |
| 31/64 | .627 | .798 | .662 | .692 | 1-15/16 | 10.02 | 12.76 | 10.58 | 11.05 |
| 1/2 | .668 | .850 | .705 | .736 | 2 | 10.68 | 13.60 | 11.28 | 11.78 |
| 33/64 | .710 | .904 | .750 | .783 | 2-1/16 | 11.36 | 14.46 | 11.99 | 12.53 |
| 17/32 | .754 | .960 | .796 | .831 | 2-1/8 | 12.06 | 15.35 | 12.73 | 13.30 |
| 35/64 | .799 | 1.017 | .844 | .881 | 2-3/16 | 12.78 | 16.27 | 13.49 | 14.09 |
| 9/16 | .845 | 1.076 | .892 | .932 | 2-1/4 | 13.52 | 17.21 | 14.27 | 14.91 |
| 37/64 | .893 | 1.136 | .943 | .985 | 2-5/16 | 14.28 | 18.18 | 15.08 | 15.75 |
| 19/32 | .941 | 1.199 | .994 | 1.038 | 2-3/8 | 15.06 | 19.18 | 15.91 | 16.61 |
| 39/64 | .992 | 1.263 | 1.048 | 1.094 | 2-7/16 | 15.87 | 20.20 | 16.75 | 17.49 |
| 5/8 | 1.043 | 1.328 | 1.102 | 1.150 | 2-1/2 | 16.69 | 21.25 | 17.62 | 18.40 |
| 41/64 | 1.096 | 1.395 | 1.207 | 1.209 | 2-9/16 | 17.53 | 22.33 | 18.52 | 19.34 |
| 21/32 | 1.150 | 1.464 | 1.214 | 1.268 | 2-5/8 | 18.40 | 23.43 | 19.43 | 20.29 |
| 43/64 | 1.205 | 1.535 | 1.272 | 1.329 | 2-11/16 | 19.29 | 24.56 | 20.37 | 21.27 |
Alloy Steel AISI 4340 Bars are extensively utilized in the aerospace, automotive, and heavy machinery industries, thanks to their remarkable mechanical properties. They are perfect for crafting aircraft landing gear, shafts, gears, fasteners, and high-strength structural components. The toughness and fatigue resistance of this steel make it ideal for parts that experience cyclic loading and high stress. Moreover, it is also employed in power generation, oil and gas, and defense sectors, where durability, impact resistance, and reliability are paramount. Engineers trust AISI 4340 Bars to create components that excel under extreme conditions.
