Phanuphong Steel and Plates, located in the vibrant city of Bangkok, Thailand, has made a name for itself as a top-notch manufacturer and supplier of high-quality 16Mo3 Pipes. They cater to a diverse array of industrial sectors, both locally and internationally. Renowned for their reliability and precision, this company produces pipes that adhere to strict international standards, ensuring they perform exceptionally well even in the toughest environments. The 16Mo3 Pipes are particularly prized for their remarkable strength, heat resistance, and durability, making them perfect for high-temperature and high-pressure applications. Thanks to cutting-edge technology and rigorous quality control, Phanuphong Steel and Plates guarantees that their clients receive piping solutions that are not only long-lasting but also safe and efficient, tailored to meet specific industrial needs.
These 16Mo3 Pipes are crafted from alloyed steel, featuring a carefully balanced mix of carbon, molybdenum, manganese, and silicon, along with trace amounts of chromium and nickel to boost performance. This unique composition grants them excellent heat and corrosion resistance, especially when faced with high temperatures and pressures. On the mechanical side, 16Mo3 Pipes showcase impressive tensile strength, outstanding creep resistance, and remarkable toughness, ensuring they can be relied upon in harsh conditions. They also boast good weldability and machinability, making them versatile for various fabrication processes. These attributes make 16Mo3 Pipes the go-to choice for power plants, boilers, heat exchangers, and the petrochemical industry, where strength and stability are paramount.
| 16Mo3 Pipes Specifications | ASTM A335 / ASME SA335 |
|---|---|
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| ASTM A335 16Mo3 Seamless Pipe Size | 1 / 2″ NB – 16″ NB |
| ASTM A335 16Mo3 Welded Pipe Size | 1 / 2″ NB – 24″ NB |
| ASTM A335 16Mo3 EFW Pipe Size | 6″ NB – 24″ NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Chrome Moly 16Mo3 Pipes Manufacturing Shapes | Hydraulic, Round, Rectangle, Square, Hex, Honed |
| Alloy Steel 16Mo3 Pipe Manufacturing Techniques | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Alloy Steel 16Mo3 Pipe Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Chrome Moly 16Mo3 Pipes End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Delivery Condition of Alloy Steel 16Mo3 Pipe | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Surface Finish | No.1, No.4, No.8 Mirror Finish, 2B |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking | Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo – on request Marked Pipe Sample: ANSI B36.19 ASTM A 335 16Mo3 12″ NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Alloy Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Chrome Moly 16Mo3 Pipes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
| 16MO3 | C | Mn | S | N | Cu | Si | P | Cr | Ni | Mo |
| 0.12- 0.2 | 0.40- 0.90 | 0.01 | 0.012 | 0.30 | 0.35 | 0.025 | 0.30 | 0.30 | 0.25- 0.35 |
| 16Mo3 | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation in 100-150 mm(%) | Elongation in 16 mm(%) | Max Thickness (mm) |
| 440-590 | 220-275 | 19 | 24 | 250 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Phanuphong Steel is a major manufacturer and a supplier of premium 16Mo3 Pipes in Bangkok, the Thailand. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
|
DIN,WNr |
BS |
UNI |
ISO |
DIN | UNS |
|
16Mo3 |
240 |
16Mo3 |
P26 |
1.5415 | K11562 |
|
243 |
TS26 |
| Product Description | Outside Diamter, OD (in mm) | Wall Thickness, WT (in mm)> |
|---|---|---|

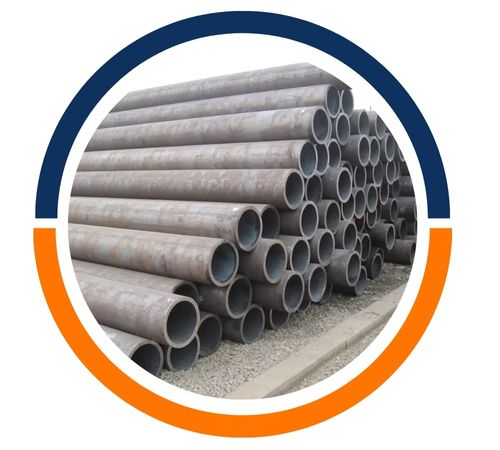

| 16Mo3 Alloy Steel Round Pipe | 6mm – 630mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Square Pipe | 12.7mm* 12.7mm to 300mm* 300mm | 0.5mm-30mm |

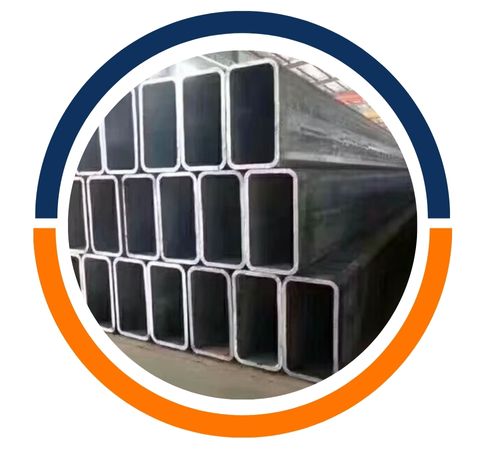

| 16Mo3 Alloy Steel Rectangular Pipe | 10*20mm to 100*200mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Colour Coated Pipe | 6mm to 630mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Ornamental Pipes | 12.7mm to 76.2mm | 0.5mm-2.0mm |

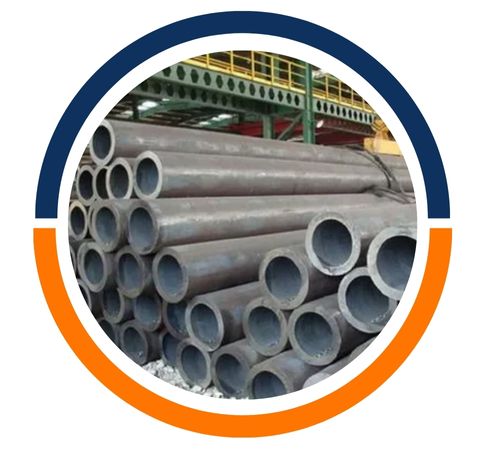

| 16Mo3 Alloy Steel Electropolished Pipes | 12.7mm to 250mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Slot Round Pipe | 12.7mm to 76.2mm | 0.5mm-2.0mm |
| 16Mo3 Alloy Steel Triangle Pipe | 16mm to 85mm | 0.5mm-3.0mm |
| 16Mo3 Alloy Steel Hexagonal Pipes | 13mm to 85mm | 0.5mm-2.0mm |
| 16Mo3 Thin-Wall Alloy Steel Pipes | 22mm*0.7mm to 108mm*2.0mm | 0.5mm-2.0mm |
| 16Mo3 Inner/Outside Polished Alloy Steel Pipes | 12.5mm to 203.2mm | 1.0mm – 5mm |
| 16Mo3 Alloy Steel Seamless Pipes | 6mm to 430mm | 0.8mm – 30mm |
| Cold Drawn | Outside Diameter, mm | Tolerance | – |
|---|---|---|---|
| outer diameter ≤ 114 | ± 10% or ± 0.2mm | – | |
| Hot rolled | Outside Diameter, mm | Tolerance | WT/outer diameter |
| outer diameter ≤ 219.1 | ± 12.5% or ± 0.4mm | WT/outer diameter ≤ 2.5% | |
| 2.5% ＜ WT/outer diameter ≤ 5% | |||
| 5% ＜ WT/outer diameter ≤ 10% | |||
| WT/outer diameter > 10% | |||
| outer diameter > 219.1 | ± 20% | WT/outer diameter ≤ 2.5% | |
| ± 15% | 2.5% ＜ WT/outer diameter ≤ 5% | ||
| ± 12.5% | 5% ＜ WT/outer diameter ≤ 10% | ||
| ± 10% | WT/outer diameter > 10% |
In industries that operate under extreme temperature and pressure, 16Mo3 Pipes are indispensable. They find extensive use in power generation plants for applications like boilers, economizers, steam pipelines, and heat exchangers. In the petrochemical and refinery sectors, these pipes are essential for safely transporting hot gases, oils, and corrosive fluids. Chemical plants depend on them for process equipment and piping systems that must withstand aggressive environments. Additionally, they are well-suited for industrial furnaces and heavy-duty engineering applications. With their blend of durability, weldability, and versatility, 16Mo3 Pipes truly stand out in demanding industrial settings.
