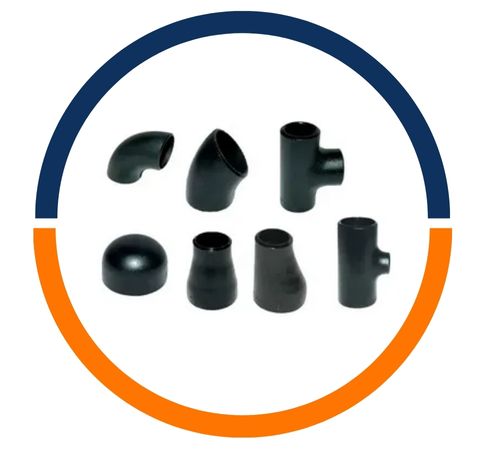

Phanuphong Steel and Plates, a reputable manufacturer and supplier based in Bangkok, Thailand, proudly offers top-notch Carbon Steel WPHY 52 Pipe Fittings tailored to meet the varied demands of industries around the globe. These fittings are crafted to deliver outstanding durability, impressive strength, and the ability to withstand tough working conditions. Utilizing cutting-edge technology and adhering to strict quality standards, WPHY 52 pipe fittings guarantee exceptional performance in high-pressure and high-temperature environments. Phanuphong Steel provides an extensive selection of fittings with precise dimensions, reliability, and a superior finish, making them perfect for critical piping systems across multiple sectors.
The composition of Carbon Steel WPHY 52 Pipe Fittings includes carbon, manganese, phosphorus, sulfur, silicon, vanadium, and trace elements that boost toughness and weldability. Their mechanical properties showcase high tensile strength ranging from 415 to 520 MPa, a yield strength of around 360 MPa, and excellent elongation characteristics. With remarkable hardness and impact resistance, these fittings maintain their stability even under elevated pressures and temperatures. Their well-balanced composition and strength make them a trustworthy choice for industrial applications, ensuring a long service life and reliable performance in essential piping systems.
Specifications : A- 860 or MSS SP75
Standard : ASTM A860 / ASME SA860
Size : ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Schedules :Sch.40 to Sch.XXs
Type : Seamless / Welded / Fabricated
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| WPHY 52 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| WPHY 52 | 515-690 | 66 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Phanuphong Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 52 Pipe Fittings products in Bangkok, Thailand. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon Steel WPHY 52 Pipe Fittings find extensive use in industries like oil and gas, petrochemical, power generation, and water treatment facilities. Their robust strength and pressure resistance make them perfect for pipelines transporting oil, natural gas, steam, and other fluids. They’re commonly utilized in offshore drilling, refineries, shipbuilding, and structural piping systems where durability is paramount. These fittings also play a crucial role in large-scale infrastructure projects by providing secure, leak-proof connections. Their versatility and dependability make them an essential choice for high-pressure piping applications across various global industries.
