Phanuphong Steel and Plates, located in Bangkok, Thailand, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Carbon Steel Nuts, celebrated for their quality, precision, and durability. Catering to a diverse array of industries, including construction, automotive, oil & gas, and heavy machinery, the company provides fastening solutions that adhere to international standards like ASTM, DIN, and ISO. With cutting-edge manufacturing capabilities and rigorous quality control, Phanuphong Steel guarantees high-performance products that can endure extreme conditions. Their carbon steel nuts come in various sizes, grades, and coatings, making them a go-to choice throughout Thailand and Southeast Asia.
When it comes to the composition and mechanical properties of Carbon Steel Nuts, they are generally produced using grades such as ASTM A563 or SAE J995, featuring carbon content between 0.15% and 0.30%, along with manganese levels of 0.60–1.65%, and small amounts of phosphorus and sulfur. These nuts are known for their impressive mechanical strength, boasting tensile strength that ranges from 400–800 MPa, depending on the specific grade. Yield strength falls between 240–600 MPa. To enhance hardness and wear resistance, carbon steel nuts undergo heat treatment. Their remarkable load-bearing capacity, toughness, and ability to resist vibration make them perfect for both static and dynamic load scenarios in industrial fastening systems.
Specification :Â ASTM F568 / ASME SF568
Dimension :Â DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range :Â M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length :Â 3 mm to 200 mm

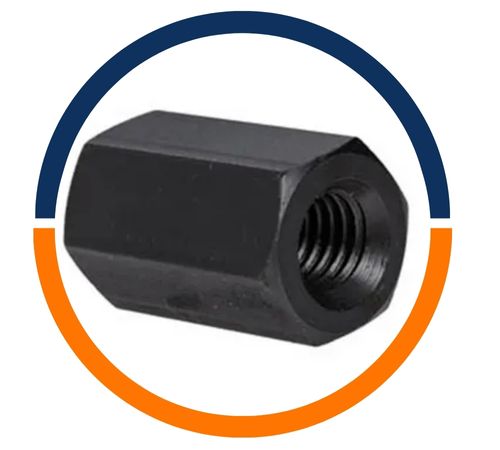

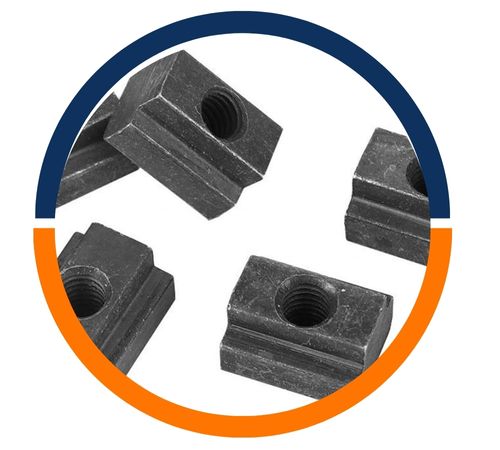

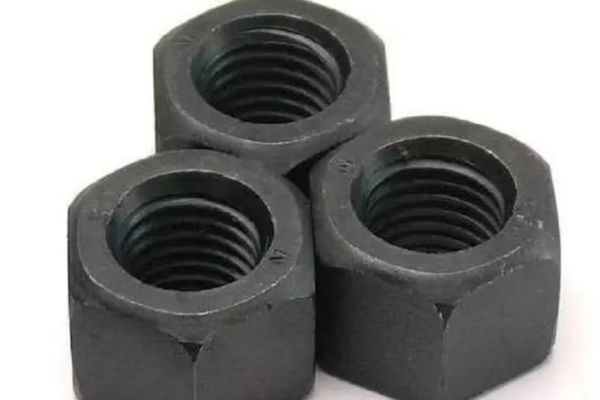

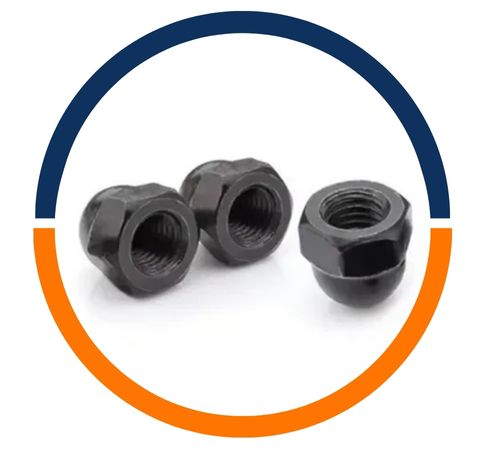

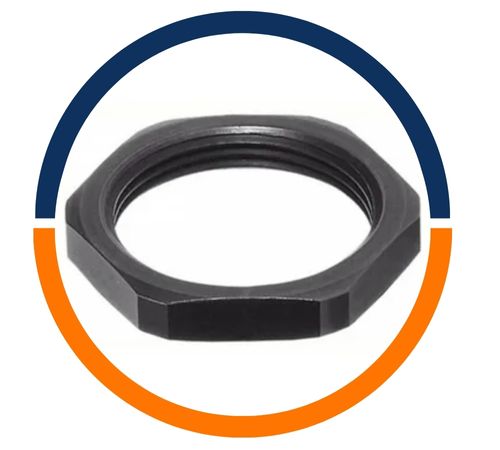

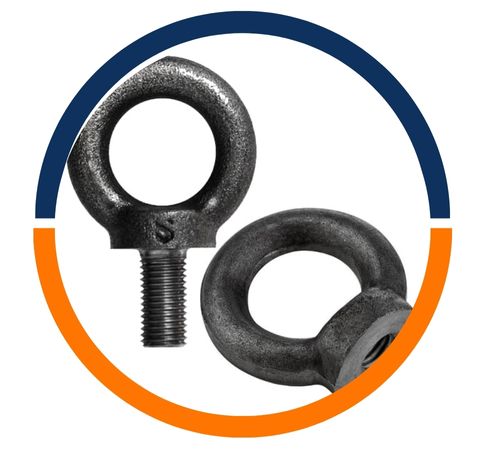

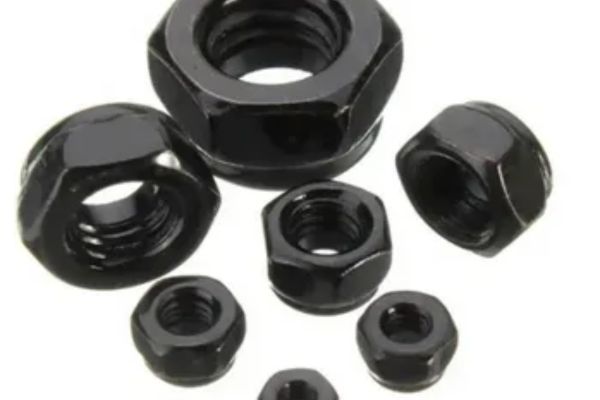

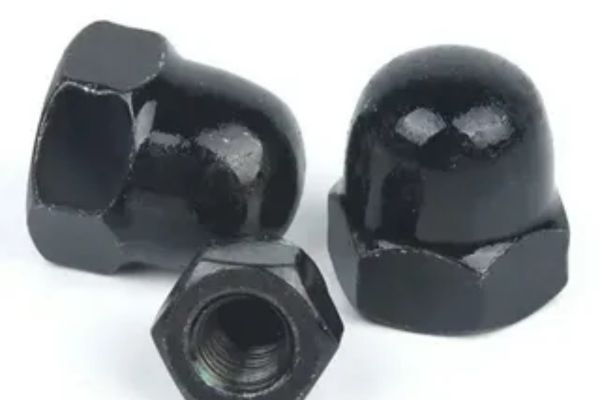

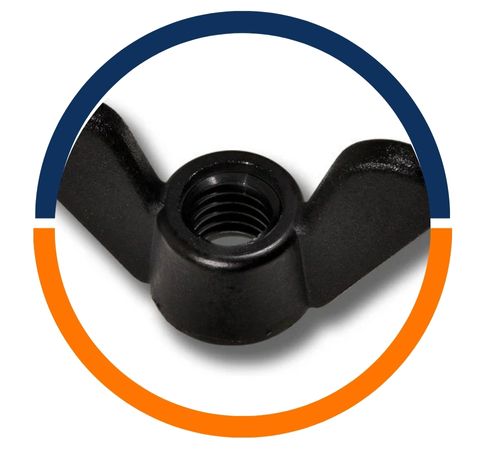

Type : Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Phanuphong Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Nut in Bangkok, Thailand. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Nut needs!
| Â Hex Nut NB | Across Corners | MAX Thickness | MIN Thickness | MAX Across Flats | MIN Across Flats |
|---|---|---|---|---|---|
| M 8 | 14.38 | 6.8 | 6.44 | 13 | 12.73 |
| M 10 | 17.77 | 8.4 | 8.04 | 16 | 15.73 |
| M 12 | 20.03 | 10.8 | 10.37 | 18 | 17.73 |
| M 14 | 23.35 | 12.8 | 12.1 | 21 | 20.67 |
| M 16 | 26.75 | 14.8 | 14.1 | 24 | 23.67 |
| M 18 | 29.56 | 15.8 | 15.1 | 27 | 26.16 |
| M 20 | 32.95 | 18 | 16.9 | 30 | 29.16 |
| M 22 | 37.29 | 19.4 | 18.1 | 34 | 33 |
| M 24 | 39.55 | 21.5 | 20.2 | 36 | 35 |
| M 27 | 45.2 | 23.8 | 22.5 | 41 | 40 |
| M 30 | 50.85 | 26.6 | 24.3 | 46 | 45 |
| M 33 | 55.37 | 28.7 | 27.4 | 50 | 49 |
| M 36 | 60.79 | 31 | 29.4 | 55 | 53.8 |
| M 39 | 66.44 | 33.4 | 31.8 | 60 | 58.8 |
| M 42 | 71.3 | 34 | 32.4 | 65 | 63.1 |
| M 45 | 76.95 | 36 | 34.4 | 70 | 68.1 |
| M 48 | 82.6 | 38 | 39.4 | 75 | 73.1 |
| M 52 | 88.25 | 42 | 40.4 | 80 | 78.1 |
| M 56 | 93.56 | 45 | 43.4 | 85 | 82.8 |
| M 60 | 99.21 | 48 | 46.4 | 90 | 87.8 |
| M 64 | 104.86 | 51 | 49.1 | 95 | 92.8 |
| M 68 | 110.51 | 54 | 52.1 | 100 | 97.8 |
| M 72 x 6 | 116.16 | 58 | 56.1 | 105 | 102.8 |
| M 76 x 6 | 121.81 | 61 | 59.1 | 110 | 107.8 |
| M 80 x 6 | 127.46 | 64 | 62.1 | 115 | 112.8 |
| Nominal or Basic Major Diameter of Nut Thread | Nuts Width Across Flats (F) | Width Across Corners (G) | Thickness of Hex Nuts (H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Basic | Max | Min |  Max |  Min | Basic |  Max | Min | ||
| 1/4 | 0.2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 0.226 | 0.212 |
| 5/16 | 0.3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | 0.273 | 0.258 |
| 3/8 | 0.3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | 0.337 | 0.320 |
| 7/16 | 0.4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | 0.385 | 0.365 |
| 1/2 | 0.5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | 0.448 | 0.427 |
| 9/16 | 0.5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | 0.496 | 0.473 |
| 5/8 | 0.6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | 0.559 | 0.535 |
| 3/4 | 0.7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | 0.665 | 0.617 |
| 7/8 | 0.8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | 0.776 | 0.724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | 0.887 | 0.831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | 0.999 | 0.939 |
| 1-1/4 | 1.2500 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 1-1/16 | 1.094 | 1.030 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.5000 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.317 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.456 | 2-3/8 | 2.431 | 2.319 |
| 3 | 3.000 | 4-1/2 | 4.500 | 4.350 | 5.196 | 4.959 | 2-19/32 | 2.654 | 2.534 |
Carbon Steel Nuts play a crucial role as fastening components across various industries, thanks to their strength and dependability. They are often used alongside carbon steel bolts and washers in construction projects, machinery assembly, automotive applications, bridges, steel structures, pipelines, and heavy equipment. Their sturdy design enables them to handle high loads, vibrations, and environmental stress with ease. In sectors like oil & gas and power generation, they are essential in high-temperature and high-pressure settings. Phanuphong Steel ensures that these nuts meet the demanding needs of their clients.
