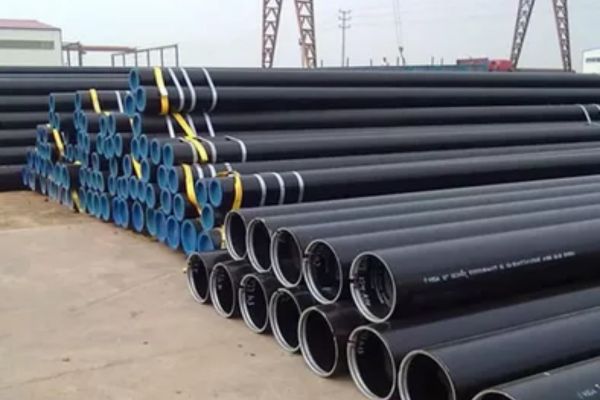

Phanuphong Steel and Plates is a reputable manufacturer and supplier based in Bangkok, Thailand, known for its high-quality Carbon Steel IS 3589 Pipes. With years of experience in the steel industry, this company provides reliable and durable piping solutions that cater to a variety of sectors. Their Carbon Steel IS 3589 Pipes are produced under stringent quality standards, ensuring they perform exceptionally well in pressure-bearing and fluid-carrying applications. Serving clients throughout Thailand and beyond, Phanuphong Steel and Plates is dedicated to delivering top-notch products, prompt delivery, and outstanding customer satisfaction in the steel and piping industry.
These Carbon Steel IS 3589 Pipes are primarily made up of carbon, manganese, sulfur, phosphorus, and a few trace elements that boost their strength and durability. They boast impressive mechanical properties, such as high tensile strength, good toughness, and wear resistance. With excellent yield strength and flexibility, these pipes excel under pressure and in various operating conditions. They also offer great weldability and formability, making them ideal for structural applications and fluid transport. Their well-balanced chemical makeup and mechanical characteristics ensure a long service life, reliability, and cost-effectiveness for both industrial and commercial purposes.
| Size in MM | 15 Nominal Bore to 150 Nominal Bore |
| Dimension & Tolerance | Dimensions IS: 3589 = 2004 / Equivalent to BS = 1985/ 1387 |
| Specifications | IS 3589 |
| Surface Finish | Black |
| Pipe Marking | All Pipe are marked as follows: Supplier or Manufacturer’s Name, Standard, Grade, OD, Thickness, Length, Heat Number |
| Features | High Strength, Corrosion Resistant, Deformability & High Toughness |
| Length | As per Client’s requirement |
| Nominal Bore | Nominal Bore | Outer Diameter | Light | Medium | Heavy | |||
| Thickness | Weight | Thickness | Weight | Thickness | Weight | |||
| MM | IN | MM | MM | Kg/Meter | MM | Kg/Meter | MM | Kg/Meter |
| 6 | 1/8″ | 10.32 | 1.80 | 0.361 | 2.00 | 0.407 | 2.65 | 0.493 |
| 10 | 3/8″ | 17.10 | 1.80 | 0.674 | 2.35 | 0.852 | 2.90 | 1.020 |
| 15 | 1/2″ | 21.43 | 2.00 | 0.952 | 2.65 | 1.122 | 3.25 | 1.450 |
| 20 | 3/4″ | 27.20 | 2.35 | 1.410 | 2.65 | 1.580 | 3.25 | 1.900 |
| 8 | 1/4″ | 13.49 | 1.80 | 0.517 | 2.35 | 0.650 | 2.90 | 0.769 |
| 25 | 1″ | 33.80 | 2.65 | 2.010 | 3.25 | 2.440 | 4.05 | 2.970 |
| 40 | 11/2″ | 48.40 | 2.90 | 3.250 | 3.25 | 3.610 | 4.05 | 4.430 |
| 50 | 2″ | 60.30 | 2.90 | 4.110 | 3.65 | 5.100 | 4.47 | 6.170 |
| 65 | 21/2′ | 76.20 | 3.25 | 5.840 | 3.65 | 6.610 | 4.47 | 7.900 |
| 80 | 3″ | 88.90 | 3.25 | 6.810 | 4.05 | 8.470 | 4.85 | 10.100 |
| 100 | 4″ | 114.30 | 3.65 | 9.890 | 4.50 | 12.100 | 5.40 | 14.400 |
| 125 | 5″ | 139.70 | ….. | …… | 4.85 | 16.200 | 5.40 | 17.800 |
| 150 | 6″ | 165.10 | …… | ……. | 4.85 | 19.200 | 5.40 | 21.200 |
| Wall Thickness | 7 Inch Nominal Bore 193.7 Kg/Meter | 8 Inch Nominal Bore 219.1 Kg/Meter | 10 Inch Nominal Bore 273 Kg/Meter | 12 Inch Nominal Bore 323.7 Kg/Meter | 14 Inch Nominal Bore 355.6 Kg/Meter | 16 Inch Nominal Bore 406.4 Kg/Meter | 18 Inch Nominal Bore 454 Kg/Meter | 20 Inch Nominal Bore 508 Kg/Meter |
| 9.53 | …… | 51.50 | 60.24 | 73.75 | 81.21 | 93.13 | 105.00 | 117.00 |
| 4.85 | 22.59 | 25.62 | 32.07 | 38.13 | …… | …….. | ……. | ……. |
| 5.20 | 24.17 | 27.43 | 34.34 | 40.84 | …… | …….. | …….. | …….. |
| 5.60 | 26.00 | 29.28 | 36.93 | 43.93 | 48.11 | …….. | ……… | ………. |
| 7.01 | 32.27 | 36.76 | 46.43 | 55.45 | 61.82 | 69.04 | …… | …… |
| 7.94 | ….. | 41.00 | 50.95 | 61.85 | 67.98 | 77.92 | 87.80 | ……. |
| 6.35 | 29.34 | 33.28 | 41.73 | 49.67 | 54.43 | 62.35 | 70.50 | 78.50 |
| 6.00 | 27.88 | 31.53 | 39.50 | 47.02 | 51.49 | 61.00 | 69.00 | …….. |
| 8.18 | …… | 42.56 | 53.42 | 65.12 | …… | …… | …… | …… |
| 12.70 | …… | ….. | …… | …… | 107.28 | 123.30 | 139.00 | 155.00 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Phanuphong Steel is a leading manufacturer and distributor of high-quality Carbon Steel IS 3589 Pipe in Bangkok, Thailand. We offer premium steel materials and a comprehensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to timely delivery and exceptional customer service, we use only the finest raw materials to ensure superior performance for industrial applications with stringent requirements. Contact us today for all your Carbon Steel IS 3589 Pipe needs!
| Nominal Bore | Outside Diameter | Light Thickness Weight | Medium Thickness Weight | Heavy Thickness Weight | |||||
| Inch | MM | Inch | MM | MM | kg/Meter | MM | kg/Meter | MM | kg/Meter |
| 1/8 | 3 | 0.406 | 10.32 | 1.80 | 0.361 | 2.00 | 2.65 | 0.493 | |
| 1/4 | 6 | 0.532 | 13.49 | 1.80 | 0.517 | 2.35 | 0.407 | 2.90 | 0.769 |
| 3/8 | 10 | 0.872 | 17.10 | 1.80 | 0.674 | 2.35 | 0.852 | 2.90 | 1.02 |
| 3/4 | 20 | 1.094 | 27.20 | 2.35 | 1.410 | 2.65 | 1.580 | 3.25 | 1.90 |
| 1.1/2 | 40 | 1.906 | 48.40 | 2.90 | 3.250 | 3.25 | 3.610 | 4.05 | 4.43 |
| 1 | 25 | 1.312 | 33.80 | 2.65 | 2.010 | 3.25 | 2.440 | 4.05 | 2.97 |
| 1.1/4 | 32 | 1.656 | 42.90 | 2.65 | 2.580 | 3.25 | 3.140 | 4.05 | 3.84 |
| 1/2 | 15 | 0.844 | 21.43 | 2.00 | 0.952 | 2.65 | 1.122 | 3.25 | 1.45 |
| 2 | 50 | 2.375 | 60.30 | 2.90 | 4.110 | 3.65 | 5.100 | 4.47 | 6.17 |
| 2.1/2 | 65 | 3.004 | 76.20 | 3.25 | 5.840 | 3.65 | 6.610 | 4.47 | 7.90 |
| 6 | 150 | 6.500 | 165.10 | – | – | 4.85 | 19.20 | 5.40 | 21.2 |
| 3 | 80 | 3.500 | 88.90 | 3.25 | 6.810 | 4.05 | 8.470 | 4.85 | 10.1 |
| 4 | 100 | 4.500 | 114.30 | 3.65 | 9.890 | 4.50 | 12.10 | 5.40 | 14.4 |
| 5 | 125 | 5.500 | 139.70 | – | – | 4.85 | 16.20 | 5.40 | 17.8 |
Carbon Steel IS 3589 Pipes are widely utilized across numerous industries due to their strength and versatility. They are commonly found in water supply systems, sewage treatment, and irrigation projects, ensuring safe fluid transportation. In the oil, gas, and petrochemical industries, these pipes are favored for transporting petroleum, natural gas, and other fluids under pressure. Additionally, they are used in construction, power plants, and boiler piping because of their durability and reliability. Their resistance to corrosion and ability to withstand high pressure make them perfect for industrial piping networks, fire-fighting systems, and mechanical engineering applications around the globe.
Phanuphong Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Bangkok, Thailand.
