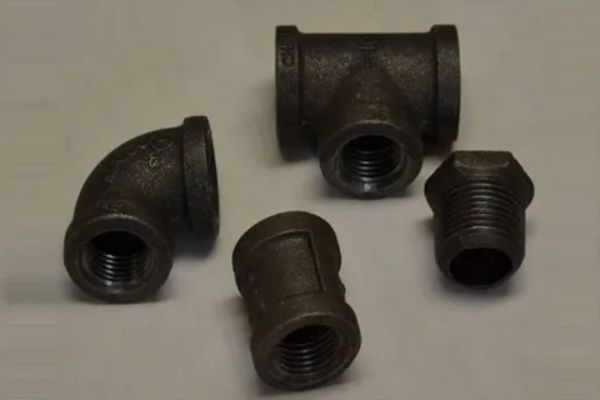

Phanuphong Steel and Plates, a reputable manufacturer and supplier based in Bangkok, Thailand, is dedicated to providing top-notch Carbon Steel F70 Forged Fittings that are built to last and perform reliably in critical piping systems. These fittings are crafted to meet international standards, ensuring they excel under high pressure and temperature conditions. Renowned for their toughness, resistance to corrosion, and secure leak-proof connections, they find applications across various industries, including oil and gas, petrochemical, power generation, and marine. With a strong focus on quality control and timely delivery, Phanuphong Steel and Plates stands out as a trustworthy partner for Carbon Steel F70 Forged Fittings around the globe.
The composition of Carbon Steel F70 Forged Fittings includes carbon, manganese, silicon, phosphorus, and sulfur in carefully measured amounts, which guarantees exceptional strength and durability. The controlled carbon content not only enhances weldability and machinability but also ensures long-lasting performance. Mechanically, these fittings boast high tensile and yield strength, impressive impact resistance, and dependable hardness. They thrive in high-pressure and high-temperature settings, providing a long service life with minimal upkeep. Their well-balanced composition and mechanical properties make them ideal for demanding industrial applications, ensuring safety, stability, and efficiency in complex piping systems.
Standard : ASTM A694 / ASME SA 694
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V | Nb |
| F70 | 0.06-0.10 | 0.20-0.40 | 1.10-1.40 | ≤ 0.020 | ≤ 0.010 | 1.20-1.70 | 0.20-0.40 | ≤ 0.30 | ≤ 0.25 | 0.02-0.06 | – |
| Grade | Yield Strength, Min (KSI ) | Tensile Strength, Min (KSI) |
| A694 | 70 | 82 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS F70 Forged Screwed Elbows, Street Elbow, Carbon Steel F70 Screwed Unequal Tee, Steel Straight Tee, Carbon Steel F70 Reducing Coupling, Carbon Steel F70 Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS F70 Threaded Bushing, Carbon Steel F70 Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel F70 Barrel Nipples, CS F70 Forged Threaded Boss, Carbon Steel F70 Forged Hex Head Bull Plugs |
| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel F70 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS F70 caps, 3000LB Socket Weld Cross |
| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS F70 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel F70 Coupling |
Carbon Steel F70 Forged Fittings are widely utilized in industries that require robust and durable connections for pipelines and equipment. In the oil and gas sector, they are essential in refineries, offshore platforms, and pipeline systems. The petrochemical industry relies on them for process piping, chemical plants, and storage facilities. Power generation plants use these fittings in turbines, boilers, and heat exchangers. Additionally, they are crucial in marine engineering, water treatment facilities, and heavy machinery. Their remarkable strength, resistance to corrosion, and ability to endure extreme pressures make Carbon Steel F70 Forged Fittings a top choice for various applications.
