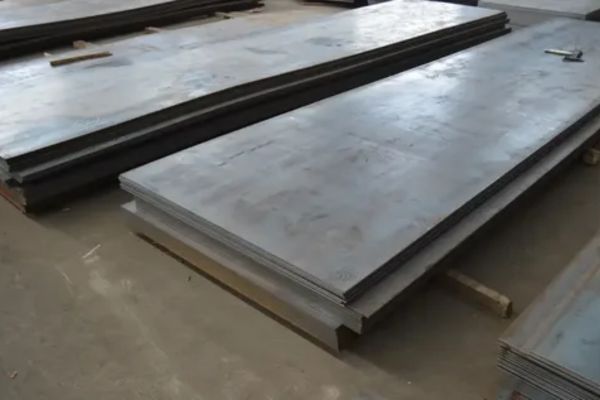

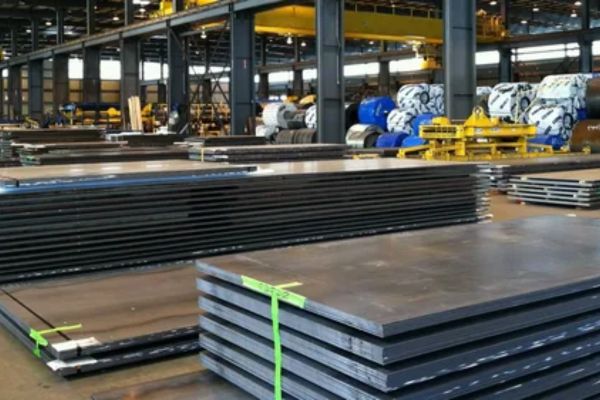

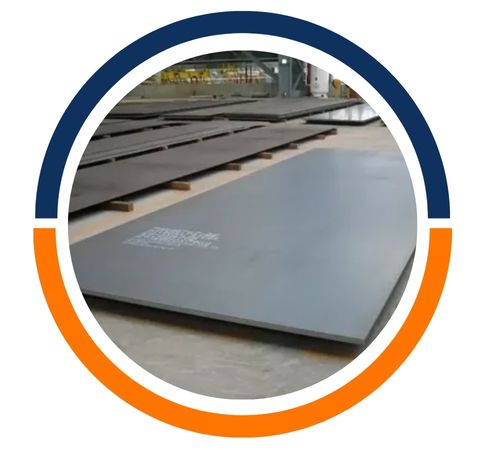

Phanuphong Steel and Plates, a top-notch manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality **Boiler Quality Sheet and Plates** tailored for tough industrial and thermal applications. With a reputation for precision manufacturing and durability, Phanuphong Steel is committed to meeting international standards, ensuring that every sheet and plate performs reliably under high temperatures and pressures. These products are perfect for boiler construction, pressure vessels, and heat exchangers, offering a blend of toughness, reliability, and precise dimensions. Catering to both local and global markets, the company provides cost-effective and versatile steel solutions that promise long-lasting durability, outstanding performance, and consistent quality across a wide range of industrial and engineering needs.
The **Boiler Quality Sheet and Plates** are mainly made from carbon steel or low-alloy steel, featuring controlled amounts of manganese, phosphorus, and sulfur to enhance strength, toughness, and ductility. Mechanically, they boast impressive tensile strength, yield strength, hardness, elongation, and impact resistance. Their uniform microstructure and excellent weldability make them ideal for high-pressure, high-temperature settings. These characteristics ensure reliability and longevity in boiler systems, pressure vessels, and structural assemblies, making this steel perfect for critical fabrication projects that demand both mechanical performance and thermal resistance.
Standard:Â ASTM A516 / ASME SA 516 Gr 60 / 65/ 70
Width:Â 1000mm-4500mm
Thickness:Â 5mm-150mm
Length:Â 3000mm-18000mm
Supply Condition :Â As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Tempering:Â Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications :Â Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.

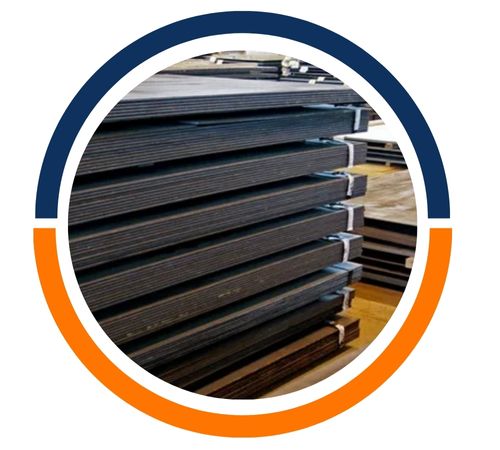

Process of Manufacturing :Â Hot-Rolled (HR)
| C | Mn | P max | S max | Si max | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
|  | t < 12.5 mm | 12.5mm < t =50mm | 50mm < t ≤ 100mm | 100mm < t ≤ 200mm | t < 200 mm | t < 12.5 mm | t 12s.5 mm | |||
| A516 Grade 55 | 0.18 | 0.2 | 0.22 | 0.24 | 0.26 | 06-09 | 0.55-0.98 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 60 | 0.21 | 0.23 | 0.25 | 0.27 | 0.27 | 06-09 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 65 | 0.24 | 0.26 | 0.28 | 0.29 | 0.29 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 70 | 0.27 | 0.28 | 0.3 | 0.31 | 0.31 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| Â | Tensile Strength (ksi) | Tensile Strength (MPa) | Yield Strength (ksi) | Yield Strength (MPa) | Elongation in 200mm(%) | Elongation in 50mm(%) |
|---|---|---|---|---|---|---|
| A516 Grade 55 | 55-75 | 380-515 | 30 | 205 | 23 | 27 |
| A516 Grade 60 | 60-80 | 415-550 | 32 | 220 | 21 | 25 |
| A516 Grade 65 | 65-85 | 450-585 | 35 | 240 | 19 | 23 |
| A516 Grade 70 | 70-90 | 485-620 | 38 | 260 | 17 | 21 |
| Material # | EN 10028-2 | DIN 17155> | BS 1501 | ASTM | JIS G3115 |
|---|---|---|---|---|---|
| 1.0345 | P235GH | HI | 161 Gr. 360 / 164 Gr. 360 | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | SPV 24 |
| 1.0425 | P265GH | HII | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | A 414 Gr. E / A 516 Gr. 60 | 　 |
| 1.0481 | P295GH | 17 Mn 4 | 224 Gr. 490 | A 414 Gr. F / A 516 Gr. 65 | SPV 32 |
| 1.0473 | P355GH | 19 Mn 6 | 　 | A 414 Gr. G | SPV 36 |
| 1.5415 | 16Mo3 | 15 Mo 3 | 1503 – 243 B | A 204 Gr. B | 　 |
| 1.7335 | 13CrMo4-5 | 13CrMo 4 4 | 620 Gr. 27 | A 387 Gr. 12 | 　 |
| 1.738 | 10CrMo9-10 | 10CrMo 9 10 | 622 Gr. 31 | A 387 Gr. 22 | 　 |
| 1.7383 | 11CrMo9-10 | 　 | 　 | 　 | 　 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) |
|---|---|---|---|---|---|
| 8 | 2055 x 12100 | ||||
| 3000 x 12000 | 2500 x 12000 | ||||
| 2500 x 12000 | 20 | 2055 x 12000 | 60 | 3000 x 6000 | |
| 3460 x 14000 | 3000 x 12000 | 65 | 3000 x 6000 | ||
| 3460 x 14000 | |||||
| 6 | 2055 x 12100 | 18 | 2055 x 12100 | 50 | 2055 x 8000 |
| 3000 x 12000 | 3000 x 12000 | ||||
| 2500 x 12000 | 2500 x 12000 | 3000 x 9000 | |||
| 3460 x 14000 | 55 | 3000 x 6000 | |||
| 12.5 | 2055 x 12100 | 4000 x 12000 | 90 | 3000 x 4000 | |
| 3460 x 14000 | 2500 x 12000 | ||||
| 3000 x 12000 | 25 | 2055 x 12000 | 100 | 3000 x 4000 | |
| 2500 x 12000 | |||||
| 4000 x 12000 | 3460 x 14000 | ||||
| 4000 x 12000 | |||||
| 10 | 2055 x 12100 | 4000 x 12000 | 70 | 3000 x 6000 | |
| 4000 x 12000 | 3000 x 12000 | 80 | 3000 x 6000 | ||
| 3000 x 12000 | 22 | 2055 x 12100 | 75 | 3000 x 6000 | |
| 2500 x 12000 | |||||
| 3460 x 14000 | 2500 x 12000 | ||||
| 3460 x 14000 | |||||
| 15 | 2055 x 12100 | 2500 x 12000 | |||
| 4000 x 12000 | 2500 x 10000 | ||||
| 3000 x 12000 | |||||
| 2500 x 12000 | 3000 x 10000 | ||||
| 3460 x 14000 | 40 | 2055 x 12000 | |||
| 3000 x 10000 | |||||
| 13 | 2055 x 12100 | ||||
| 3460 x 14000 | 4000 x 12000 | ||||
| 3000 x 12000 | 2500 x 12000 | ||||
| 2500 x 12000 | 30 | 2055 x 12000 | |||
| 4000 x 12000 | |||||
| 35 | 2055 x 12000 | ||||
| 16 | 2055 x 12100 | ||||
| 4000 x 12000 | |||||
| 3000 x 12000 | 2500 x 10000 | ||||
| 2500 x 12000 | 45 | 2055 x 8000 | |||
| 3460 x 14000 | 3000 x 9000 |
You’ll find the **Boiler Quality Sheet and Plates** widely utilized in boiler manufacturing, power generation, heat exchangers, pressure vessels, and industrial machinery. They are well-suited for high-pressure boiler drums, furnace plates, superheater tubes, and structural components in thermal and power plants. Their strength, toughness, and resistance to thermal stress make them incredibly versatile for heavy-duty applications. Valued for their performance, durability, and safety, Boiler Quality Sheets are a go-to choice in the industry.
